SKU: 131RDE-UBV02

Upper Boot c/w Gate Valve Slide Unit - Horizontal - Collinson

Name: Upper Boot c/w Gate Valve Slide Unit - Horizontal - Collinson
Brand: Collinson
SKU: 131RDE-UBV02
Price: 210.00 GBP
Availability: InStock

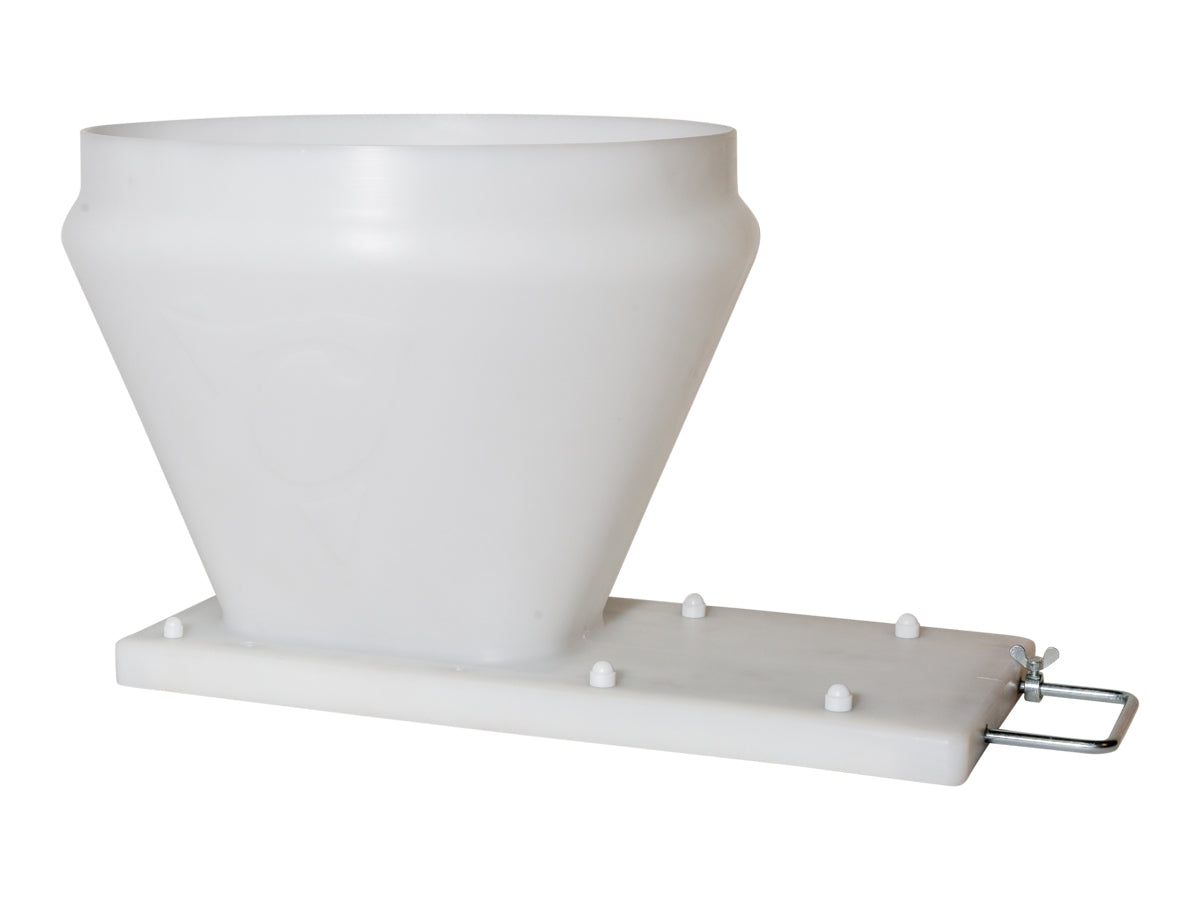

Upper Boot complete with Horizontal Gate Valve Slide

£210.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

The upper pickup unit fits directly to any industry standard silo outlet of 450mm diameter and is manufactured from tough injection moulded plastic and comes complete with an integrated cut off slide

RDE-UBV00

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Upper Boot c/w Gate Valve Slide Unit - Horizontal - Collinson FAQs

Which Collinson upper boot should I choose: Horizontal or 30°?

Choose based on how your auger line needs to leave the silo:

Horizontal upper boot for a straight-out run from the silo. (SKU 131RDE‑UBV02)
30° upper boot for an angled transition from the silo. (SKU 131RDE‑UBV30)

Both are “upper pickup” units intended to mount to the 450mm silo outlet and provide a shut-off slide.

What is a Collinson upper boot and what does it do?

An upper boot is the transition piece at the silo outlet that connects the bottom of the silo to the start of your centreless (shaftless) auger line. It helps guide feed from the silo into the auger system and (on these versions) includes a gate valve / cut‑off slide so you can shut off feed flow for servicing or maintenance.

Will a Collinson upper boot fit my silo outlet (what size is it designed for)?

These Collinson upper boot assemblies are designed to fit directly to an industry-standard silo outlet of 450mm diameter.

What’s included with a Collinson upper boot, does it come with a shut-off or slide valve?

Yes. The Collinson upper boot is manufactured from tough injection-moulded plastic and supplied complete with a cut‑off slide (gate valve slide unit).

What are the most common issues with a Collinson upper auger boot, and how do I troubleshoot them?

Feed leaking / dusting around the boot: Check the boot is seated flush on the silo outlet and that fasteners are evenly tightened; re-check the condition/fit of any sealing surfaces at the joint. (Upper boot mounts directly to the silo outlet, so alignment matters).

Poor feed flow into the auger line: Confirm the system is operating normally (the power head drives a flexible, spring-like, shaftless spiral inside a sealed tube), and inspect for obstructions or build-up around the inlet area.

Slide valve stiff / not closing fully: Ensure the path of the slide is clear of feed fines and the handle is not under mechanical strain from misalignment. Clean-out and re-test operation with the system stopped.
