[{"id":209383915672,"handle":"auger","title":"Centreless Feed Supply Flex Auger","updated_at":"2026-04-23T12:20:04+01:00","body_html":"\u003cp\u003eIn a centreless auger system, a power head rotates a flexible, spring-like auger spiral inside a sealed tube. Unlike traditional augers with a central shaft, this spiral is thick and shaftless, allowing it to bend and convey materials around corners.\u003c\/p\u003e\n\u003cp\u003eAs the power head turns the spiral, materials inside the tube are gently pushed forward, reducing segregation and damage. The power head can be powered by either a single or three-phase electric motor, with different power options available depending on the use.\u003c\/p\u003e\n\u003cp\u003eThe flexible design enables installation around bends and on inclines, offering more versatility than rigid augers. The shaftless spiral is especially suitable for handling fragile materials like pellets and granules with minimal breakage. The system is reliable and low-maintenance due to fewer moving parts and the absence of a central bearing.\u003c\/p\u003e\n\u003cp\u003eIts enclosed, shaftless construction also ensures quieter operation compared to other conveying methods. Centreless auger systems are commonly used to transport feed from storage silos to dispenser outlets in livestock facilities.\u003c\/p\u003e","published_at":"2020-07-20T07:54:31+01:00","sort_order":"manual","template_suffix":"pagefly.7d10d223","disjunctive":false,"rules":[{"column":"tag","relation":"equals","condition":"Auger"}],"published_scope":"global"},{"id":428686606558,"handle":"feeding-google","title":"Feeding Google","updated_at":"2026-04-23T13:23:27+01:00","body_html":"","published_at":"2024-04-18T10:15:27+01:00","sort_order":"best-selling","template_suffix":"","disjunctive":false,"rules":[{"column":"tag","relation":"equals","condition":"feedingover30"}],"published_scope":"global"},{"id":686955200898,"handle":"test-auger","title":"Test Auger","updated_at":"2026-04-23T12:20:04+01:00","body_html":"","published_at":"2026-04-13T13:28:01+01:00","sort_order":"best-selling","template_suffix":"auger-test","disjunctive":false,"rules":[{"column":"tag","relation":"equals","condition":"Auger"}],"published_scope":"global"},{"id":434793414878,"handle":"wholesale-no","title":"Wholesale NO","updated_at":"2026-04-23T13:51:01+01:00","body_html":"","published_at":"2024-08-24T06:54:51+01:00","sort_order":"best-selling","template_suffix":"","disjunctive":false,"rules":[{"column":"tag","relation":"equals","condition":"Net Product:Yes"}],"published_scope":"global"}]
Auger Upper Boot complete with 30° Gate Valve Slide Unit
£228.00
Unit price /
Unavailable
Minimum Order Quantity:
Maximum quantity allowed is .
The product can be bought in quantity increments of .

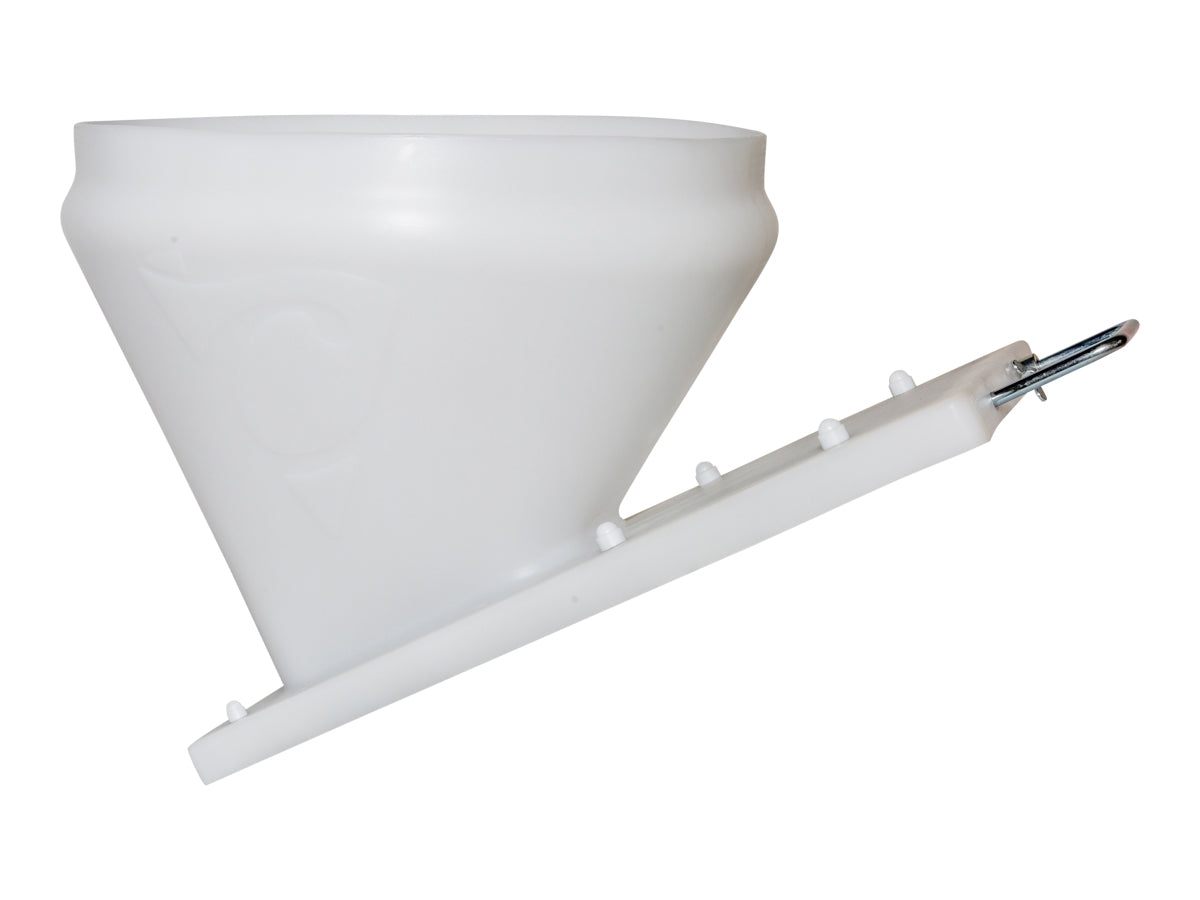

The upper pickup unit fits directly to any industry standard silo outlet of 450mm diameter and is manufactured from tough injection moulded plastic and includes an integrated cut off slide
RDE-UBV30
Delivery and Shipping
We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:
Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)
For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.
Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)
* 0 - 19.99 kg Courier: £3.90 plus VAT * 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg
Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)
* 0 - 0.99 kg DPD £3.90 plus VAT * 1 - 19.99 kg Courier £32.00 plus VAT * 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg
Which Collinson upper boot should I choose: Horizontal or 30°?
Choose based on how your auger line needs to leave the silo:
Horizontal upper boot for a straight-out run from the silo. (SKU 131RDE‑UBV02)
30° upper boot for an angled transition from the silo. (SKU 131RDE‑UBV30)
Both are “upper pickup” units intended to mount to the 450mm silo outlet and provide a shut-off slide.
What is a Collinson upper boot and what does it do?
An upper boot is the transition piece at the silo outlet that connects the bottom of the silo to the start of your centreless (shaftless) auger line. It helps guide feed from the silo into the auger system and (on these versions) includes a gate valve / cut‑off slide so you can shut off feed flow for servicing or maintenance.
Will a Collinson upper boot fit my silo outlet (what size is it designed for)?
These Collinson upper boot assemblies are designed to fit directly to an industry-standard silo outlet of 450mm diameter.
What’s included with a Collinson upper boot, does it come with a shut-off or slide valve?
Yes. The Collinson upper boot is manufactured from tough injection-moulded plastic and supplied complete with a cut‑off slide (gate valve slide unit).
What are the most common issues with a Collinson upper auger boot, and how do I troubleshoot them?
Feed leaking / dusting around the boot: Check the boot is seated flush on the silo outlet and that fasteners are evenly tightened; re-check the condition/fit of any sealing surfaces at the joint. (Upper boot mounts directly to the silo outlet, so alignment matters).
Poor feed flow into the auger line: Confirm the system is operating normally (the power head drives a flexible, spring-like, shaftless spiral inside a sealed tube), and inspect for obstructions or build-up around the inlet area.
Slide valve stiff / not closing fully: Ensure the path of the slide is clear of feed fines and the handle is not under mechanical strain from misalignment. Clean-out and re-test operation with the system stopped.
