SKU: 084586

Approved for the FEFT 2026 Grant

Gallagher Quickweigh kit 580/W0

Quickweigh kit 580/W0 inc Wired Load Bars

£1,512.00
Minimum Order Quantity:
Maximum quantity allowed is .
The product can be bought in quantity increments of .

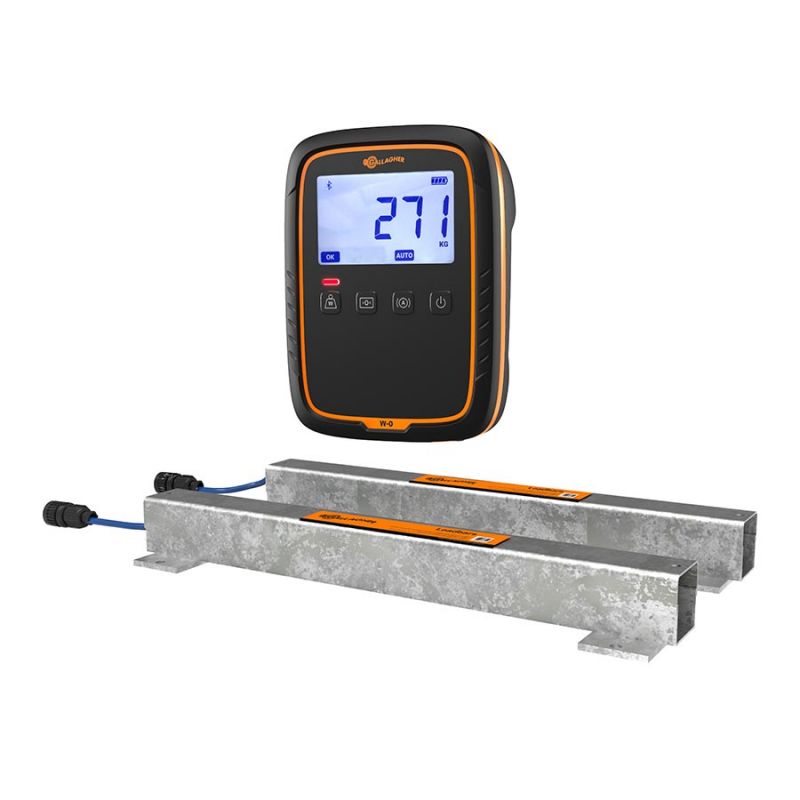

Quickweigh kit 580/W0 Comprising a W-0 Weigh Head and a pair of 580mm wired  Loadbars

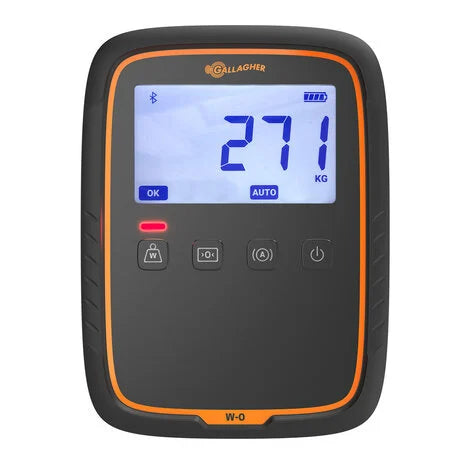

W-0 Weigh Scale:

Track the weights of your livestock to better understand their performance. The W-0 Weigh Scale offers a straightforward installation, user-friendly design, and Bluetooth connectivity to the Gallagher Animal Performance mobile app, making it an excellent choice for farmers beginning to monitor their animals' weights.

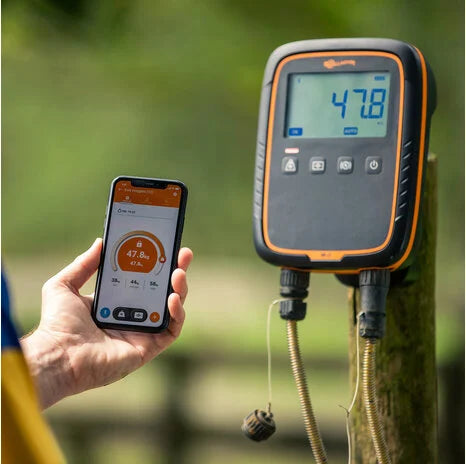

You can send livestock weight data directly from the W-0 Weigh Scale to your Animal Performance mobile app in real time. Additionally, by using a Gallagher Handheld EID reader*, you can scan animal ID numbers directly into the app, associating them with weight data to monitor an individual animal’s performance throughout its life.

*Animal Performance Plus subscription required for EID scanning

1500kg Loadbars - 580mm:

A low-profile load bar designed specifically for weighing with cattle platforms and sheep crates. Commonly used for weighing young cattle, lambs, and sheep. Constructed from hot-dip galvanised steel, these load bars offer a durable yet portable option capable of handling loads up to 1500kg. They are designed to fit securely beneath most platforms up to 600mm in width, providing everything you need from a load bar to begin weighing.

Note: These load bars are not suitable for installation under a cattle crush they can only be used inconjunction with a platform inside a crush.

  • Weigh and display
  • Record livestock data on your phone
  • Used for platform weighing

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • 2 Year Gallagher Warranty

  • Free Delivery

    On All Orders Over £250 ex VAT

  • Special offers

    Regular sales and discounts

  • Easy returns

    Hassle free returns policy

Not sure which weighing system is right for your farm?

Use this guide to find the right Gallagher Weighing and EID equipment for your farm. Answer the questions below or jump straight to the section that matches your setup.

or

Still need help?

Call the Dalton Supplies team on 01845 578 325.

Gallagher Quickweigh kit 580/W0 FAQs

What can, and what can't the Gallagher W-0 do?

✅ What the W‑0 can do:

The W‑0 transmits weight information through Bluetooth to the Gallagher Animal Performance app on your mobile device. A Gallagher handheld EID reader (such as the HR5) can also be paired with the same app. The app associates the EID number (provided by the reader) with the weight data (from the W‑0), allowing you to obtain individual animal weights and performance records.


❌ What the W‑0 cannot do:

The W‑0 doesn't have an integrated EID reader. You cannot connect an EID reader directly to the W‑0, as it does not have serial or panel reader inputs. EID information is neither stored nor shown on the W‑0 device itself; all processing is done via the app.

Benefits of Livestock Weighing & EID Systems

At Dalton Supplies, we supply the Gallagher Weighing & EID range because accurate stock weighing is one of the most impactful investments a livestock farmer can make. Whether you're tracking daily liveweight gain (DLWG) in a beef finishing unit, monitoring condition in a suckler herd, or meeting BCMS reporting requirements, the right system puts real data behind every decision.

Even experienced farmers who assess weights by eye will consistently find a 5–15% discrepancy against the scale and over a season, that gap means missed deadweight targets, inaccurate anthelmintic dosing, and lost margin. Add EID and every animal's weight is recorded automatically against its tag number, removing manual data entry and keeping your movement records BCMS-ready

Weighing and EID System

A Gallagher Weighing & EID system automates the heaviest admin in livestock management. Weight is captured and matched to each animal's electronic ID number in a single pass through the crush no manual recording, no transcription errors, and a complete weight history available in the handler for every animal on farm.

In the yard, that means automatic drafting by weight or tag, instant DLWG performance on screen, and the kind of accurate records that satisfy BCMS reporting without extra effort.

In the accounts, it means precise anthelmintic dosing to eliminate waste, early identification of poor performers before they cost you more to carry, and confident selection of animals that hit the deadweight or market weight range not guesswork.

Animal Performance Plus

Gallagher Animal Performance App gives you live access to your herd data whether you're at the crush, in the farmhouse, or off-site. Your weighing indicator, smartphone, and computer stay in sync via Wi-Fi, so every device holds the same up-to-date records — no manual transfer, no outdated figures when it matters most.

Gallagher

Since 1938, Gallagher have been helping farmers to harness the power to farm by delivering world-leading animal management solutions, that enable customers to operate responsibly, productively, and profitably.

They lead the market in electric fencing, weighing and electronic identification (EID) and data collection.
