TPI Air Inlet 145-VFG - Please note the connection kit & Vermin Mesh are not included
TPI Air Inlet 145-VFG
£64.80
Unit price /
Unavailable
TPI Air Inlet 145-VFG - Please note the connection kit & Vermin Mesh are not included
is backordered and will ship as soon as it is back in stock.
Minimum Order Quantity:
Maximum quantity allowed is .
The product can be bought in quantity increments of .

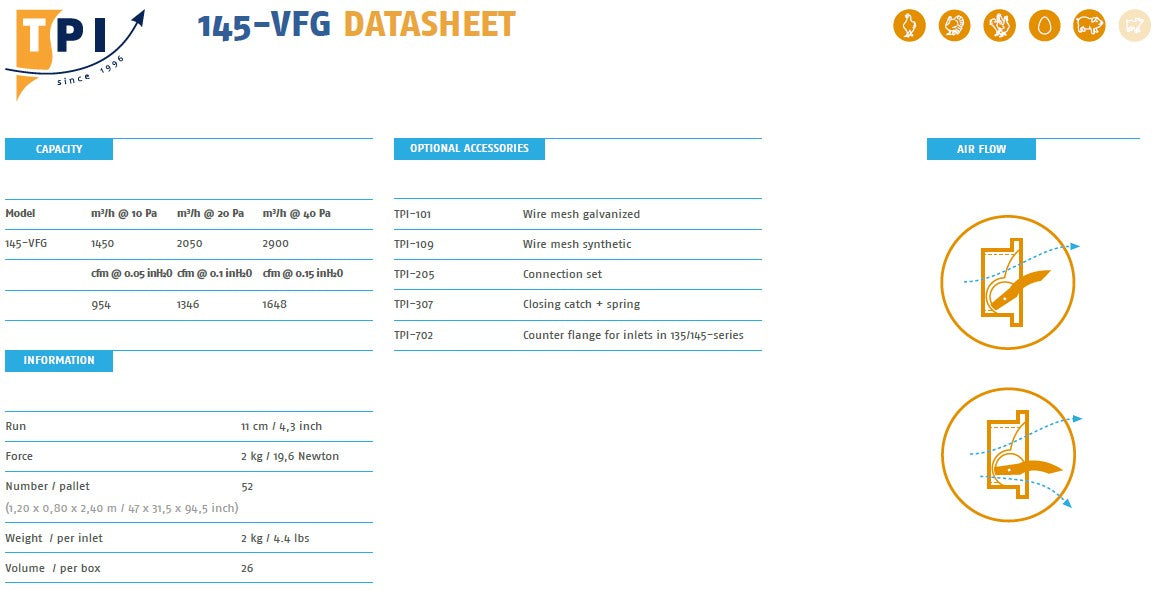

Air Inlet Model 145-VFG made of high quality polyurethane foam. Flange model with flange on the front side. Divided air direction; up to 35% air enters only from the top side; above 35% also from the bottom side Control by means of one stainless steel side arm This inlet has a curved inner flap.
External Flange size: 730mm x 350mm
Wall opening size required: 670mm x 290mm (This leaves a 20mm expansion gap around the inlet)
Depth from back of flange: 95mm
Please note that the connection kit, closing catch and Vermin mesh, whilst shown, are not included, if you require these please add:
TPI 205b Connection kit
TPI 307 Closing Catch
TPI 101 - Vermin Mesh
It is recommended to have vermin mesh installed on your inlets for added bio-security to stop birds and other vermin getting your poultry house.
This inlet is suitable for almost all applications. With a middle hinged inner valve the air will be divided and also flows underneath the valve when it is opened over 35%. The inlet is controlled by means of a stainless steel side arm. This inlet is executed with a curved inner valve so when it is opened for maximum ventilation air is also guide downwards to the animals. Also known as a Readan inlet.
