SKU: TPI 145-VFG

TPI Air Inlet 145-VFG - Please note the connection kit & Vermin Mesh are not included

Name: TPI Air Inlet 145-VFG - Please note the connection kit & Vermin Mesh are not included
Brand: TPI
SKU: TPI 145-VFG
Price: 64.80 GBP
Availability: InStock
Rating: 2.00 (1 reviews)

TPI Air Inlet 145-VFG

£64.80

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

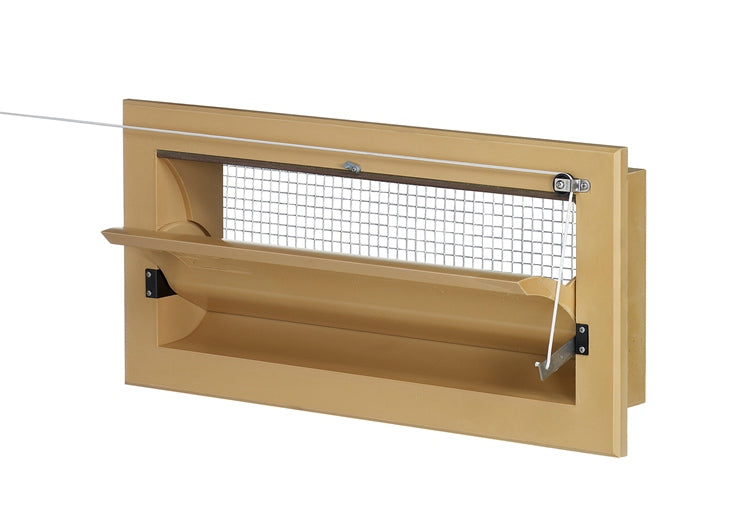

Air Inlet Model 145-VFG made of high quality polyurethane foam. Flange model with flange on the front side.

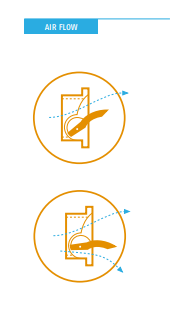

Divided air direction; up to 35% air enters only from the top side; above 35% also from the bottom side
Control by means of one stainless steel side arm
This inlet has a curved inner flap.

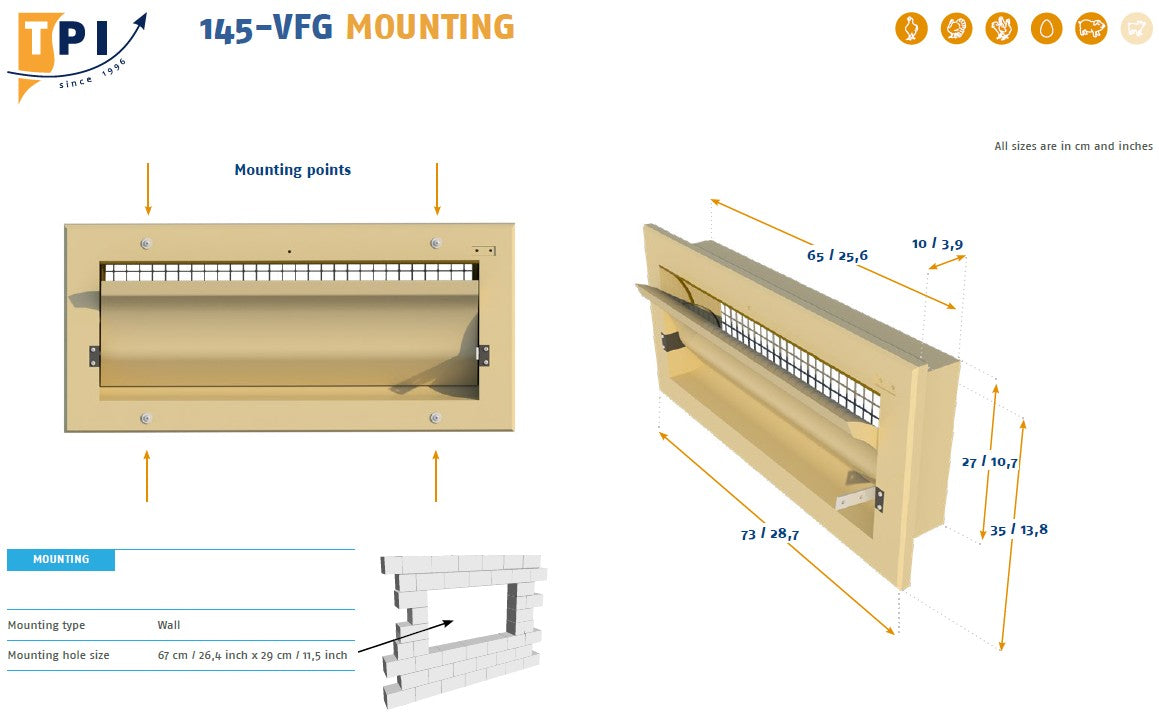

External Flange size: 730mm x 350mm

Wall opening size required: 670mm x 290mm (This leaves a 20mm expansion gap around the inlet)

Depth from back of flange: 95mm

Please note that the connection kit, closing catch and Vermin mesh, whilst shown, are not included, if you require these please add:

It is recommended to have vermin mesh installed on your inlets for added bio-security to stop birds and other vermin getting your poultry house.

This inlet is suitable for almost all applications. With a middle hinged inner valve the air will be divided and also flows underneath the valve when it is opened over 35%. The inlet is controlled by means of a stainless steel side arm. This inlet is executed with a curved inner valve so when it is opened for maximum ventilation air is also guide downwards to the animals. Also known as a Readan inlet.

Product Download

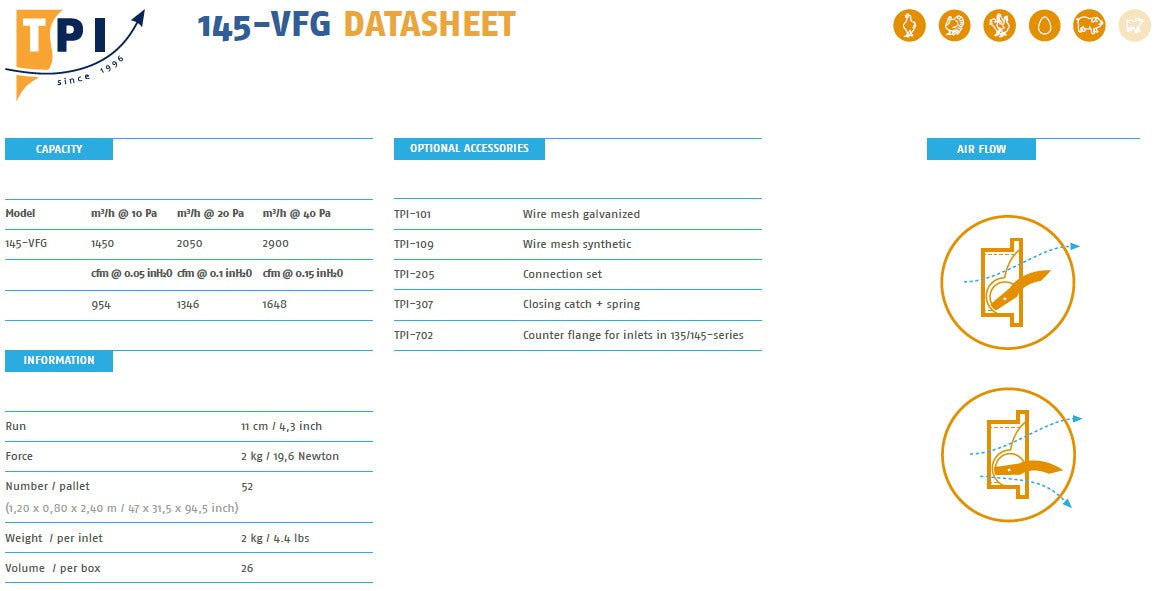

TPI-145 Inlet information

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 0 - 0.99 kg DPD £3.90 plus VAT
* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

TPI Air Inlet 145-VFG - Please note the connection kit & Vermin Mesh are not included FAQs

What is the main purpose of a TPI air inlet in a poultry house?

A TPI air inlet is designed to control and distribute fresh air evenly throughout the poultry house. It ensures proper ventilation by mixing incoming fresh air with warm inside air, reducing temperature fluctuations, moisture build-up, and ammonia levels. This creates a healthier, more productive environment for the birds.

Why is the TPI 145VFG such a popular model in the UK poultry industry?

The TPI 145VFG is a best-seller because of its durability, reliability, and excellent air control performance. Its aerodynamic design ensures consistent air throw and mixing, even at low ventilation rates, making it ideal for the UK’s variable climate. It’s also made from high-quality UV-stabilised materials, ensuring long service life and minimal maintenance.

How do TPI air inlets improve bird performance and welfare?

Proper ventilation through TPI inlets maintains a stable temperature and air quality, preventing cold drafts and reducing stress on the birds. This leads to better feed conversion, growth rates, and overall welfare.
A well-ventilated house also reduces disease risk by controlling humidity CO₂ and ammonia levels. When fully open the inlets force air to bird level to help in hot weather.

Can TPI air inlets help reduce energy costs in poultry houses?

Yes. By ensuring efficient airflow and reducing the need for excessive fan use, TPI inlets help maintain the desired climate with less energy input. Their precise control reduces heat loss during winter and improves cooling efficiency in summer, contributing to lower overall operating costs.

Are TPI 145VFG inlets easy to install and maintain?

Absolutely. The TPI 145VFG is designed for quick installation with a simple mounting system and lightweight construction. It requires minimal maintenance, thanks to its robust materials and smooth surfaces that prevent dust build-up. Regular inspection and cleaning are usually all that’s needed to keep performance at its best.

TPI

TPI are a well known brand for quality air inlets and ventilation chimneys for the livestock industry TPI started in Vught, Holland in 1995 and quickly moved to De Waterman 4 in Den Bosch. From this brand new facility, they started growing the company internationally. They continuously expanded warehouse capacity to meet the growing demand for their ventilation components.

More than 25 years later TPI are still going from strength to strength.
