SKU: 31Z6301PH

Ziehl 630mm Wall Plate Fan - 805mm Square Plate - 1ph

Name: Ziehl 630mm Wall Plate Fan - 805mm Square Plate - 1ph
Brand: Ziehl
SKU: 31Z6301PH
Price: 564.00 GBP
Availability: InStock

£564.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

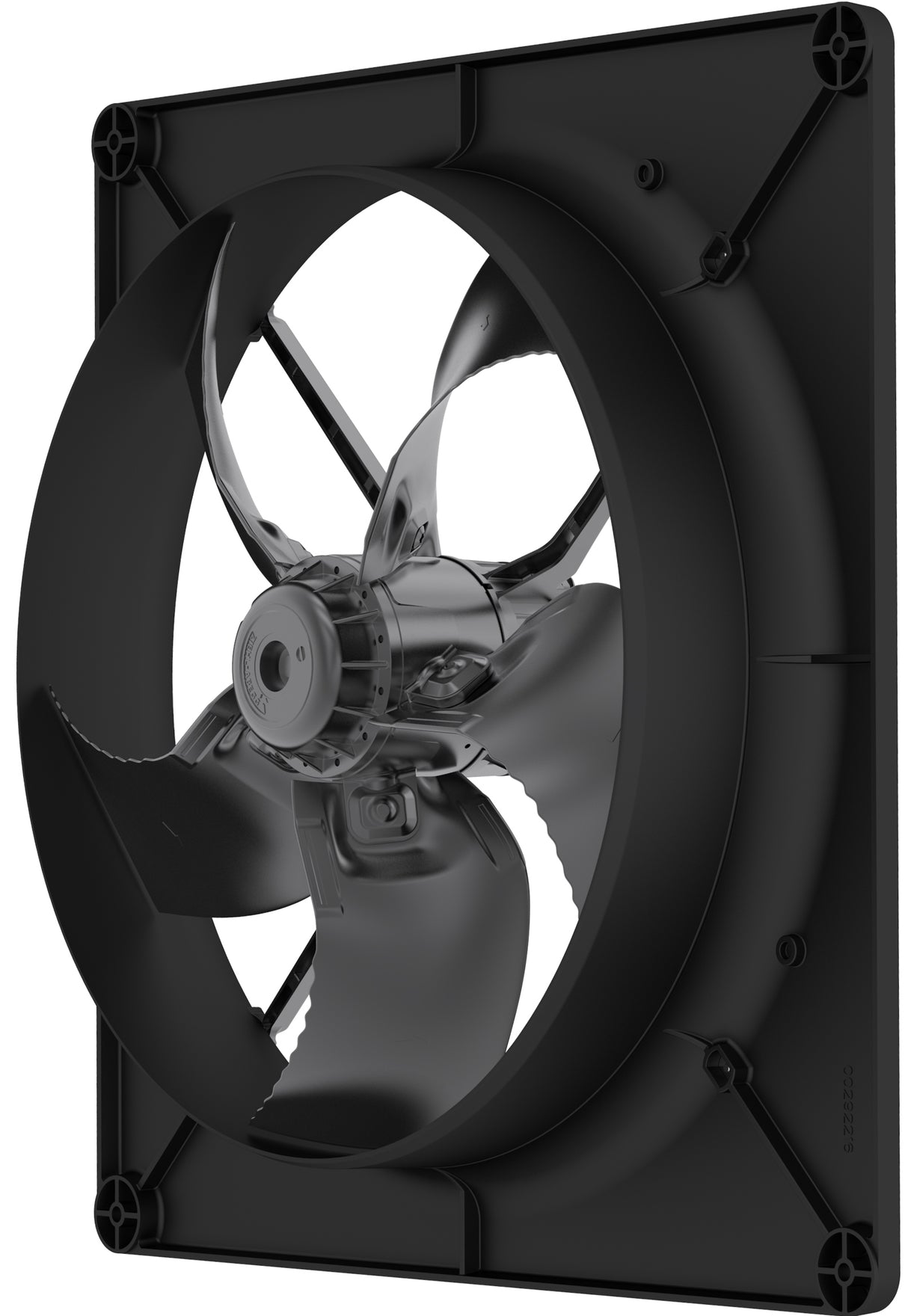

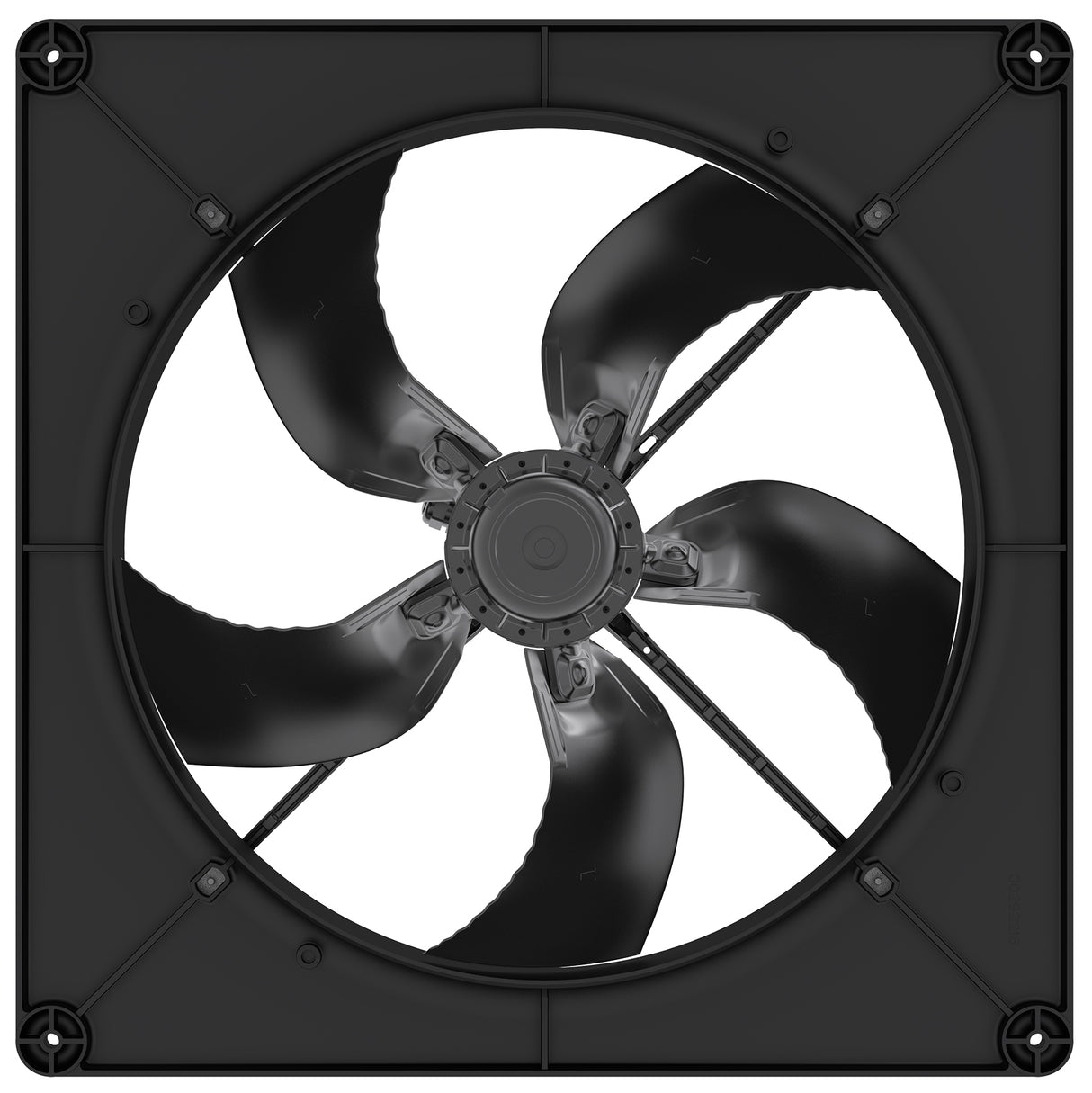

Ziehl 630mm Wall Plate Fan with 805mm Square Plate

630mm
1ph
230Volt
890rpm
3.3amp
15996 - FF063-6EQ.4I-A5R2

The FFowlet axial fan with ultra-low-noise biomimetic blades is specially designed for applications with low pressure losses, such as in agriculture. With protection class IP54 and coated blades, the axial fan is perfect for use in extreme conditions. The fan also offers high flexibility due to fully speed-controlled volume flow rate.

This fan has the same wall plate size as a Woods 670mm & 710mm

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 0 - 0.99 kg DPD £3.90 plus VAT
* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Ziehl 630mm Wall Plate Fan - 805mm Square Plate - 1ph FAQs

What is the starting current of a 630mm Ziehl fan?

Check your model number, but the model generally stocked by Daltonsupplies.com is 15996 - FF063-6EQ.4I-A5R2 which has a starting current of 4.6Amp

Does this Ziehl fan come with a wire guard?

No, these fans are sold without a guard.

What size mounting plate does it fit?

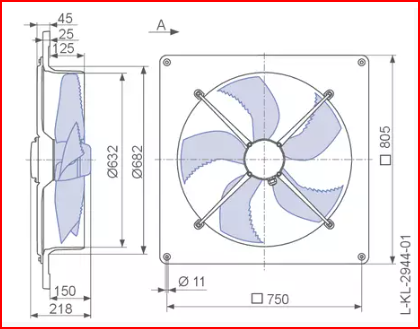

This item will fit onto an existing Ziehl mounting plate which measures 805mm Square to the outside edge and a centre hole diameter of 632mm. It will also directly fit where you once had a Woods 670 or 720 Model 2102 Fan.

Does this fan come with a square mounting plate?

Yes, it’s a complete plate fan.

Ziehl-Abegg

Fascination, innovation and always one step ahead of the future - that is the claim of the globally active company in the areas of ventilation technology, control technology and drive technology. ZIEHL-ABEGG was founded in 1910 by Emil Ziehl in Berlin. Today the company headquarters is located in Künzelsau, Baden-Württemberg. They have a development and competence center InVent, a source of revolutionary developments and trend-setting technologies, also located there.
A place of unique inventions for the benefit of their customers for highly efficient, emission-reduced, first-class products.
