SKU: 70150

Thermocouple 250mm for S2/S4/S8 and M2 Gasolec Heater

Name: Thermocouple 250mm for S2/S4/S8 and M2 Gasolec Heater
Brand: Gasolec
SKU: 70150
Price: 6.60 GBP
Availability: InStock

£6.60

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

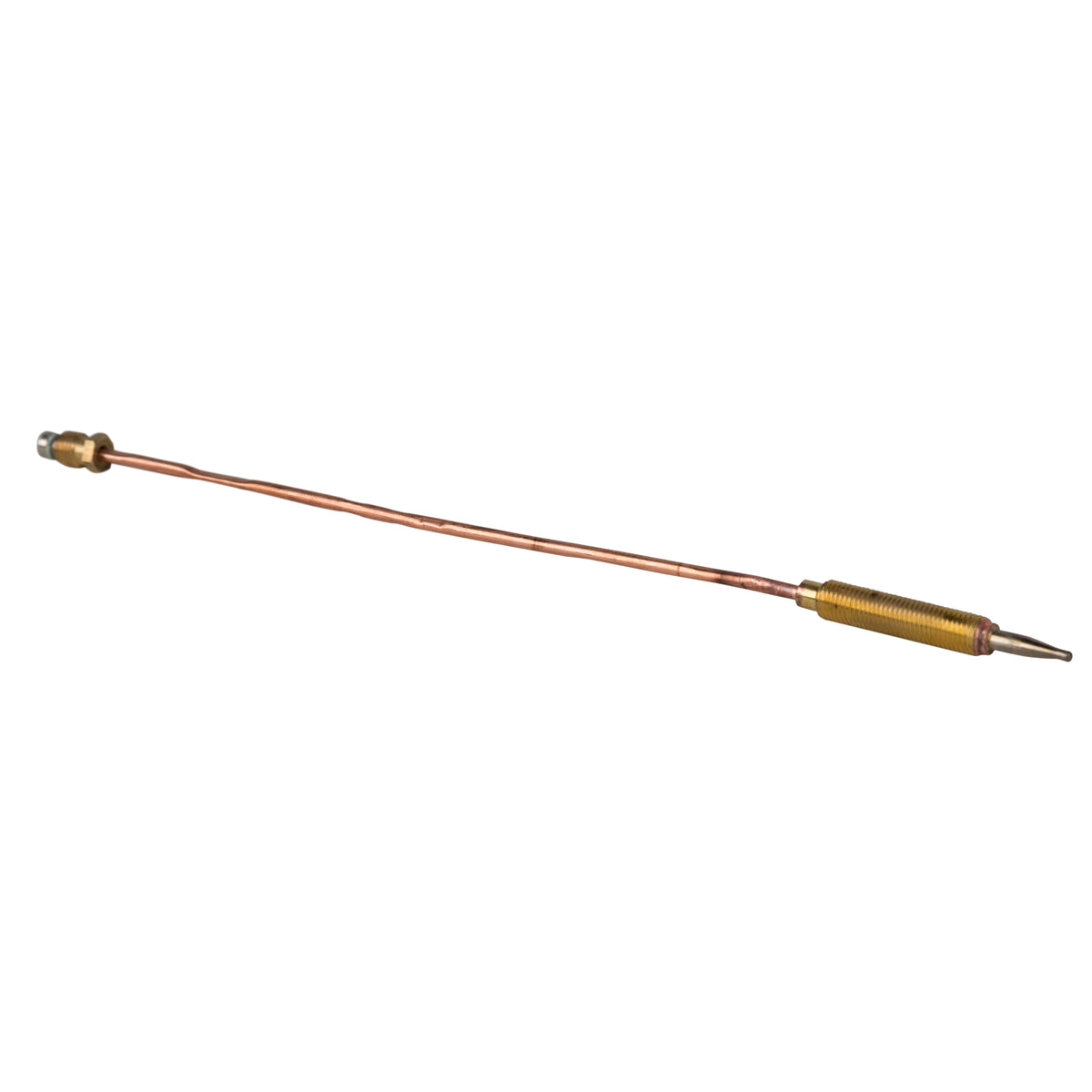

Thermocouple 250mm long, for S2, S4, S8 and M2 Gasolec Heater

Also known as a flame failure sensor, this cuts off the gas if the flame extinguishes.

Thermocouples are delicate items, if they are tightened too much the contact points can easily be damaged.
The correct way to do this is:

Tighten the nut on the thermocouple as much as one can by hand
Then use an 8mm spanner to turn the nut 60deg, or 1/6th of a turn more

PU150

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Thermocouple 250mm for S2/S4/S8 and M2 Gasolec Heater FAQs

I have a Gasolec M5/M8 — is PU150 the right thermocouple?

Usually no: M5/M8 models often use a longer thermocouple (commonly shown as ~330mm in M8 parts documentation), so PU150 (250mm) may be too short.
If in doubt, check your heater model and the length on the old thermocouple (or send us a photo), because Gasolec thermocouple selection varies by model.

How do I know if my PU150 thermocouple is failing?

Common symptom: the heater lights while you’re holding the safety button, but goes out when you release it (because the sensor isn’t “proving” the flame properly).
Because the thermocouple is the “sensor”, issues here often show up as poor “staying lit” behaviour.

Which Gasolec heaters does #70150 PU150 fit?

PU150 is the “short” thermocouple (250mm) for M2/M3 and also for S‑series range of Gasolec heaters. for example a 250mm thermocouple is for S2/S4/S8 and M2.

What is the thermocouple for on a Gasolec brooder and what does it do?

It's a flame‑failure sensor, used on Gasolec heaters. Its job is simple: if the flame goes out, it helps shut off the gas, improving safety.
