SKU: 95603TPG

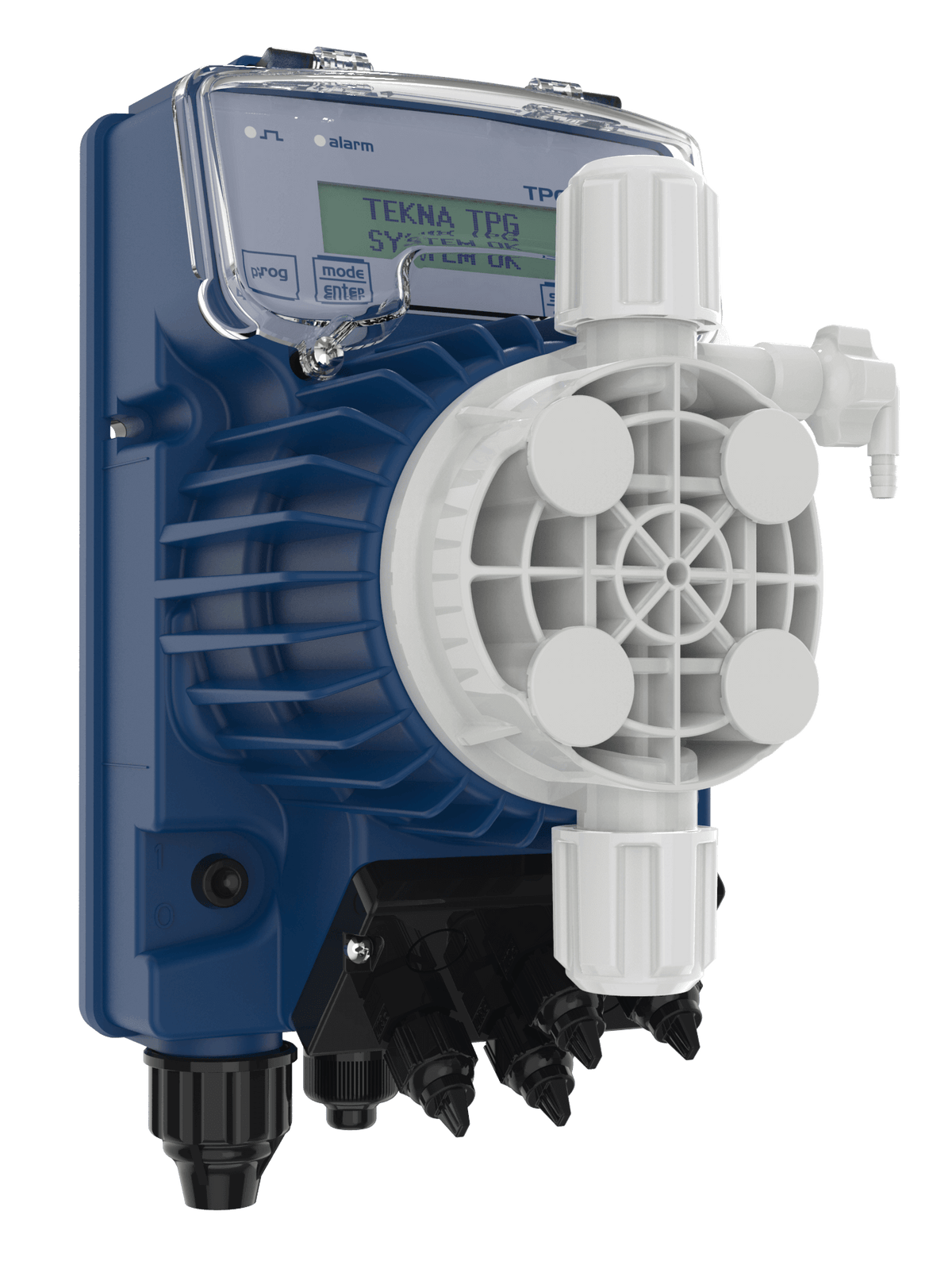

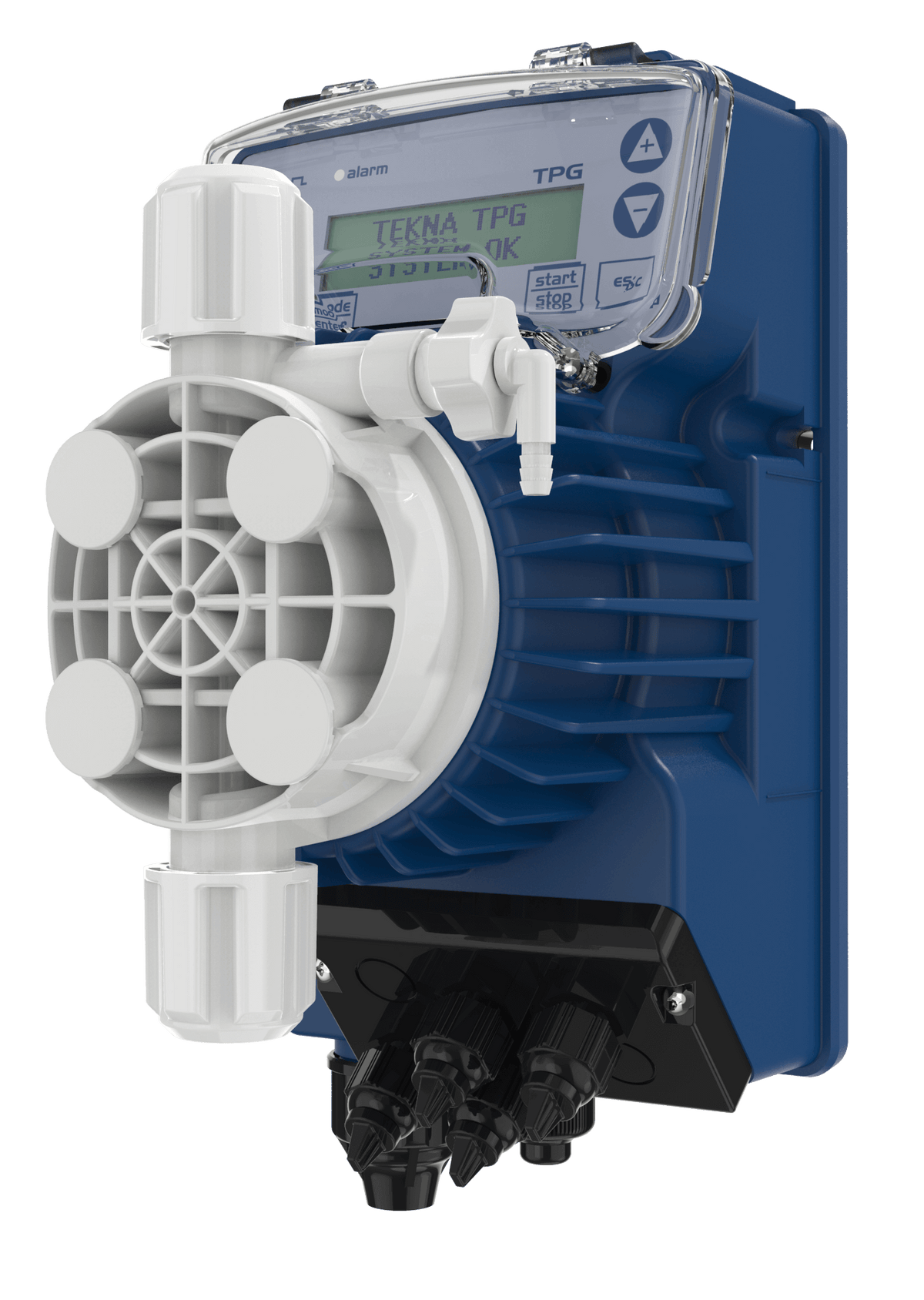

Tekna Proportioning Dosing Pump TPG 603

Name: Tekna Proportioning Dosing Pump TPG 603
Brand: Seko
SKU: 95603TPG
Price: 741.60 GBP
Availability: InStock

£741.60

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

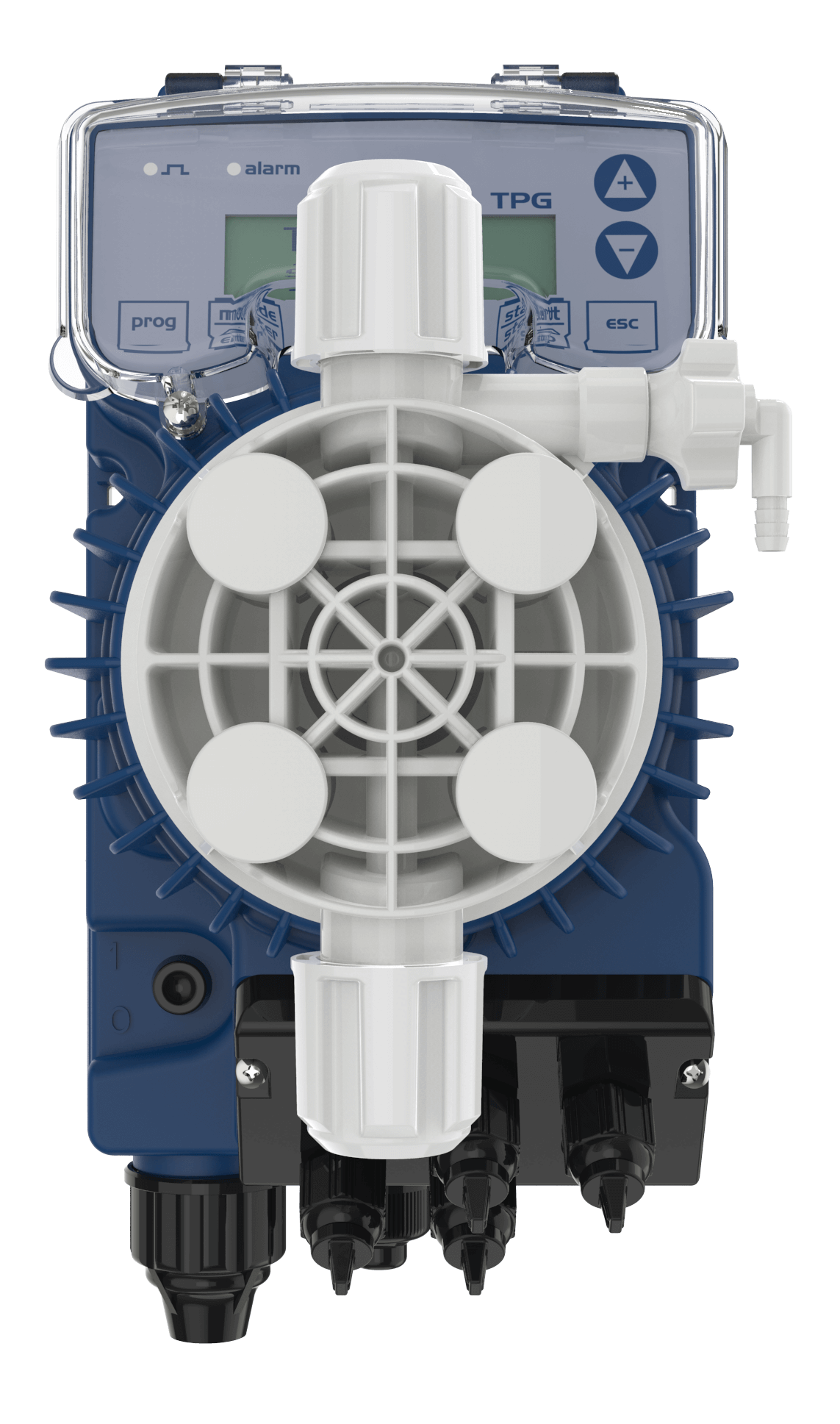

Seko Digital dosing pump with constant flow rate that can be manually adjusted or proportional flow rate according to an external analogue (4÷20 mA) or digital pulse signal (e.g. from water meter).

This digital version of the APG, includes additional characteristics: timer function, ppm dosing, statistics, password and On/Off input (remote switch).

Tekna TPG Series is equipped with a manually priming pump for the start up. The pump is furnished with a complete standard installation kit, which includes: PVDF foot filter and injection valve, PVC suction tube, PE delivery tube. A PVDF-T installation kit is available on request.

Flow rates: from 4 to 8 l/h
Max back pressure: up to 12 bar
Power supply: 100 - 240V 50/60 Hz
Stroke rate: from 0 to 180 strokes/minute
Pump head: PVDF
Diaphragm: PTFE
External Enclosure: PP reinforced with fibreglass protection degree IP65
Manually priming valve
Installation kit: Included

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Tekna Proportioning Dosing Pump TPG 603 FAQs

Does the pump deliver 8L/hour at 12 bar?

No. The Tekna TPG 603 Proportioning Dosing Pump has different duty points: 4L/hour at 12 bar and 8L/hour at 2 bar. Choose capacity at the actual injection pressure.

How can dosing track changing water demand?

The Tekna TPG 603 Proportioning Dosing Pump supports proportional control from a pulse signal, such as a compatible water meter, or a 4–20mA analogue signal. Match signal scaling to the required dose.

How should I check actual dosing output?

Calibrate the Tekna TPG 603 Proportioning Dosing Pump by measuring concentrate uptake over a known period under working backpressure. Compare the result with the required stock-solution dose and water throughput.
