SKU: 111DFT 36M1T 2P 1PH

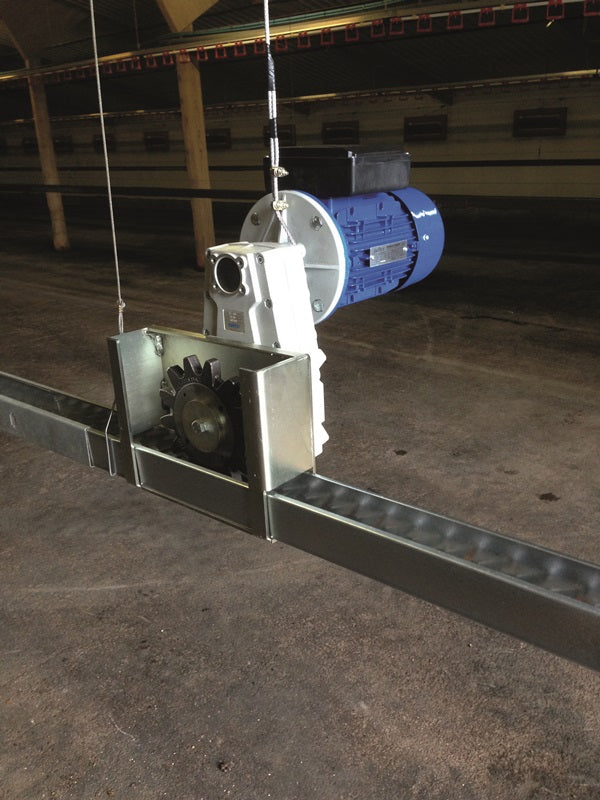

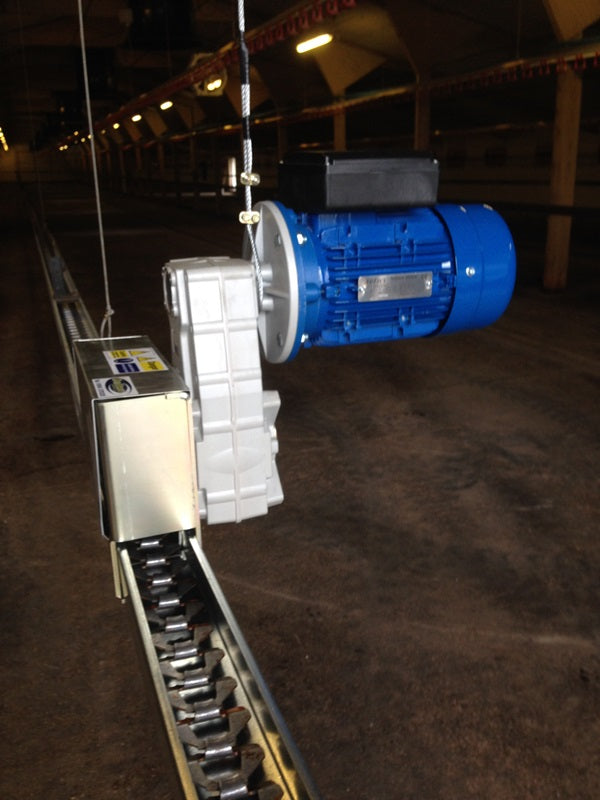

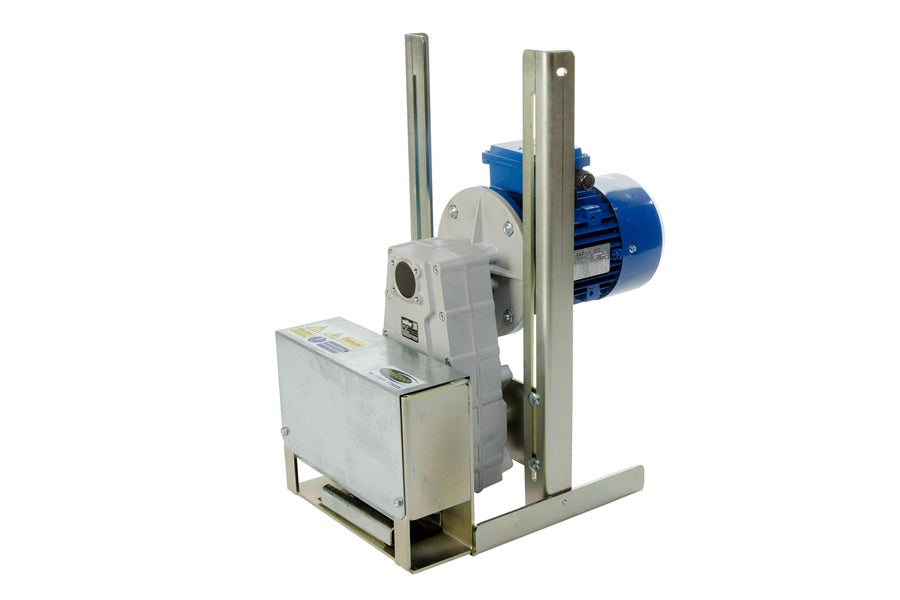

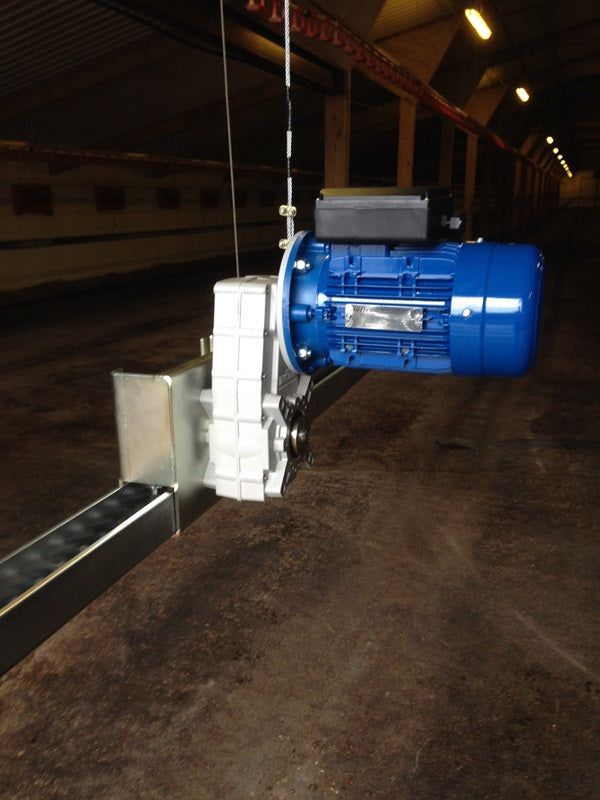

Single Track Flat Chain Feeder Drive Unit, Single Phase, 36m per minute - with Legs - Broiler Breeders

Name: Single Track Flat Chain Feeder Drive Unit, Single Phase, 36m per minute - with Legs - Broiler Breeders
Brand: Dalton Engineering
SKU: 111DFT 36M1T 2P 1PH
Price: 868.80 GBP
Availability: InStock

£868.80

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

Maximum 200m of Feed Chain Circuit
Single Track, Single Phase, direct drive unit, 36m (120ft) per minute.
Supplied with 1.5kW Single Phase Motor

Our FT range of lightweight chain feeder drive units follow the design features of our DX range

Aluminium motor and gearbox for reduced weight
Standard of the shelf metric frame motors, D90, B5 flange
Dry gearbox joint for easy maintenance
Hollow shaft design for rapid repairs in the event of foreign objects becoming trapped under the drive sprocket
Reversible drive wheel for prolonged life, uses 8mm hollow steel or 5mm brass shear pins

This kit comprises of:

KIT111DFT-18M1T
18M1.5,1~2PCC,B35
112LEG-FT-DRIVE

Also available at speeds of 12m, 18m & 24m per minute, with or without legs, and single or 3 phase, please call us to discuss the best configuration for you

How to use

Instruction Manual

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 0 - 0.99 kg DPD £3.90 plus VAT
* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Single Track Flat Chain Feeder Drive Unit, Single Phase, 36m per minute - with Legs - Broiler Breeders FAQs

Why is this Dalton drive unit specific to Broiler Breeders?

The Single track 36m per minute flat chain feeder drive unit drives feed chain around the circuit at 36m per minute, this is vital in broiler breeders that all birds get feed within 4 minutes of the chain feeder starting. The speed stops birds from selecting the nicest parts of the feed ration as it passes them and also stops bird migration around the circuit.

Is the Single Track Flat Chain Feeder Drive Unit available in single phase and three phase?

Yes , all our Flat Chain Feeder Drive Units are available in both 1 and 3 phase.

Can I swap the motor on a Dalton Independent Drive Unit?

Yes, all of the Dalton supplies flat chain feeder drive units have removable motors, so there is no need to swap the whole unit should the motor fail. Simply remove 4 bolts and pull the motor free. Always ask an electrician to disconnect / reconnect a motor.

What do the legs do on a Dalton Drive Unit?

The legs are for stability when used in a free standing system. They are height adjustable.

Can the Single Track Flat Chain Feeder Drive Unit be suspended?

Yes, the Single Track Flat Chain Feeder Drive Unit can be suspended using a suitable suspension system.
