SKU: 36LRD16

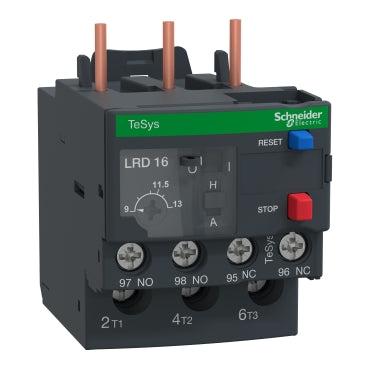

Schneider TeSys D Overload Relay for Direct on line starter - LRD16

Name: Schneider TeSys D Overload Relay for Direct on line starter - LRD16
Brand: Schneider
SKU: 36LRD16
Price: 60.00 GBP
Availability: InStock

£60.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

Overload Relay 9.0 - 13.0 Amp

TeSys LRD thermal overload relay, 13.0A/690V, thermal setting range 9.0-13.0A, tripping class 10A, for protection of 3-phase motors 0.55kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling.

Settings are protected by a transparent cover lockable by sealing.

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 0 - 0.99 kg DPD £3.90 plus VAT
* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Schneider TeSys D Overload Relay for Direct on line starter - LRD16 FAQs

What causes the overload relay to trip repeatedly?

Motor overload or too much mechanical load
Relay settings that are incorrect
Single phasing or voltage imbalance
Problems with seized bearings or the equipment being driven
Frequent starting leading to excessive heat accumulation

It is important to identify the root cause before resetting the relay to avoid damaging the motor.

How do I select the correct TeSys D overload relay?

Select a relay whose adjustment range covers the motor's full-load current (FLC) indicated on the motor's nameplate. Adjust the relay to correspond with the motor's rated current to ensure adequate protection. Schneider provides various TeSys D relay options, generally ranging from 0.1A to 150A.

What does a Schneider TeSys D overload relay do in a DOL starter?

A TeSys D overload relay safeguards the motor against harm resulting from prolonged overcurrent, overload situations, or phase failure. When the motor pulls too much current for an extended period, the relay activates and de-energises the contactor, halting the motor to prevent overheating.
