SKU: 31TB4E45Q

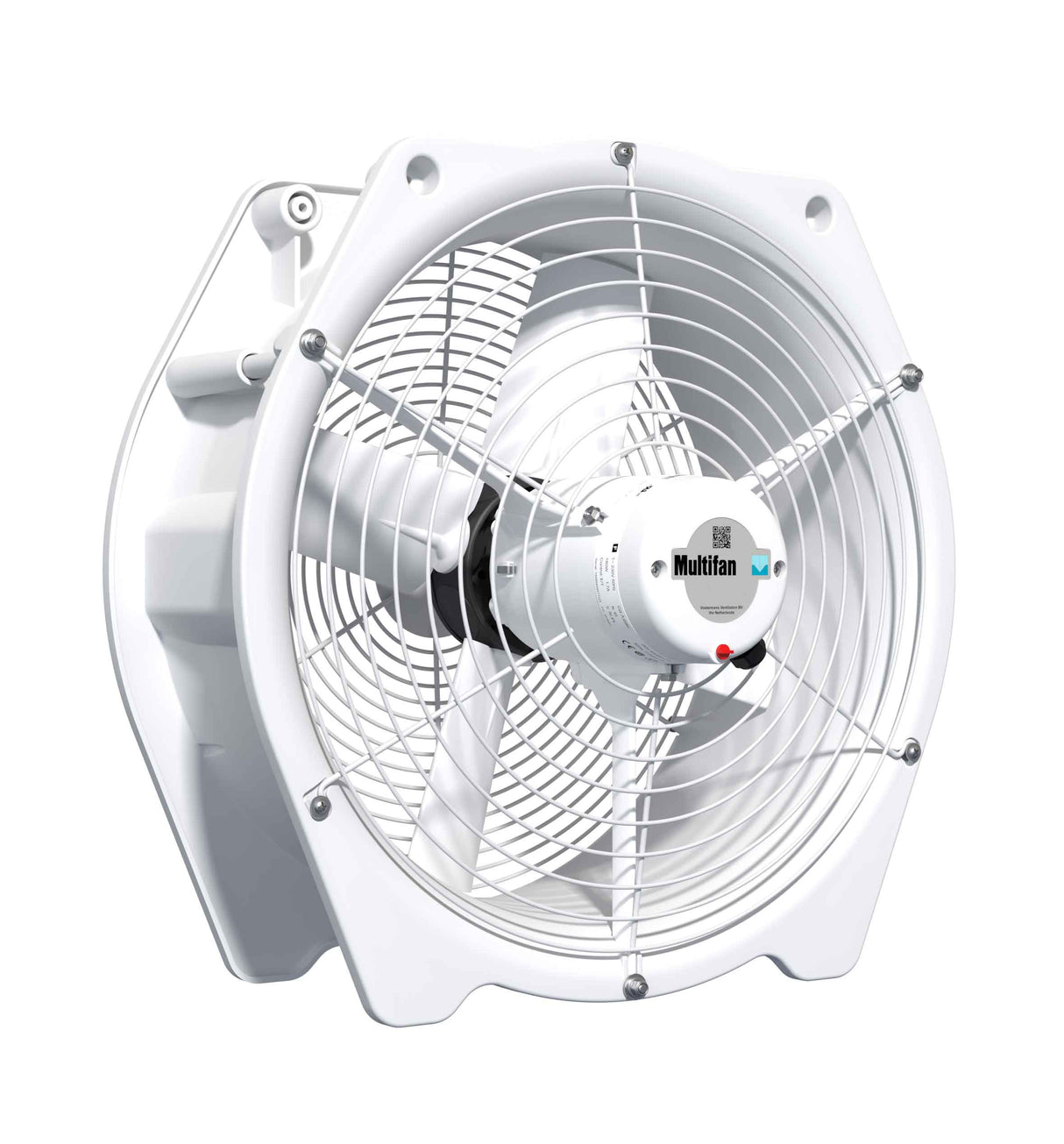

Recirculation Fan 472mm

Name: Recirculation Fan 472mm
Brand: Multifan
SKU: 31TB4E45Q
Price: 468.00 GBP
Availability: InStock

Horizontal Circulation Fan

£468.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

The next generation of circulation fans

With the new Multifan Horizontal Circulation Fan, you can create a uniform indoor climate while minimizing energy consumption. The improved fan design offers a number of important advantages. For example, the energy efficiency of the fan has been greatly improved, and it is much quieter. Create the ideal growing climate for your livestock or crop, or create a fresh breeze with this compact, powerful fan.

Recirculation Fan 1PH 472mm, 2.4A, 390W, 8500m³/hr, inc guards.

Compact aerodynamic tube with tube fan resistant to high temperatures and other severe climate conditions.

Easy mounting

Thanks to their design and prepared suspension points, these fans are easy to install on-site.

High throw

Thanks to its innovative design, these fans have a large effect area. This means you need fewer fans to blow air over a long distance.

0.5 m/s	62.0 m
1 m/s	31.0 m
2 m/s	15.5 m

Technical data

Voltage	230V
Phase	1 ~
Frequency	50 Hz
Power consumption	390 W
Nominal current	1.7 A
Speed	1410 RPM
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
Insulation Class	CL.F
IP Class	IP55
Weight	14.5 Kg
Packing dimensions	337 x 620 x 620 mm

Product Download

Spec Sheet

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 0 - 0.99 kg DPD £3.90 plus VAT
* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Recirculation Fan 472mm FAQs

How should Vostermans circulation fans be installed for optimal airflow?

Fans need to be set up so their airflow overlaps, making a steady flow from one fan to the next. Don’t space them out too much, and make sure they’re in the main airflow route without anything blocking them. This helps mix the air better and keeps the temperature even.

Can the fan speed be controlled, and how does it affect performance?

Yes, most Vostermans circulation fans use electronic or transformer-based systems to control their speed. Slowing them down adjusts the QH curve (airflow versus pressure), which can affect how efficient they are and how far the air reaches.

How far does a circulation fan usually throw air?

The throw distance, defined as the airflow reach at 0.5 m/s, differs depending on the model and size. For instance, a 50 cm fan may achieve a throw of up to 62 meters in optimal conditions. However, obstacles and lower speeds can reduce this range.

Multifan

Vostermans Ventilation develop, produce and distribute axial fans for the agricultural and industrial markets across the globe.

With a passion for technology and a deep commitment to their customers, they deliver high-quality axial fans that meet all your ventilation needs.

A family business with 425 employees worldwide, with headquarters in Venlo, the Netherlands.
