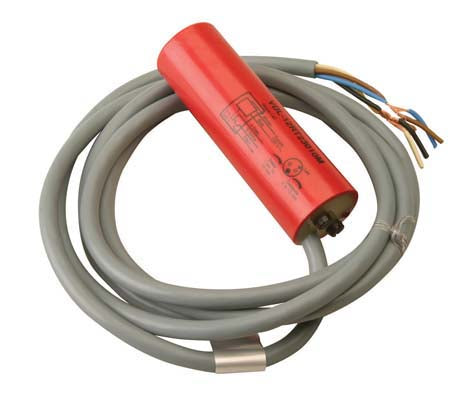

Proximity Switch 24v, 0-10min delay, 5 wire # Note this is 24volt #
Capacitive sensor in thermoplastic polyester for mounting in PG36 screw gland. With adjustable sensing distance and with built-in time delay. Excellent for use in agriculture (detection of grains, fluid etc.)
Mode of Operation:
Power supply is applied to the sensor (brown and blue cables) and time measurement starts, when the set time has expired (0-10 min) the relay operates (connection between black and yellow cable) and remains connected until the sensor is activated. After activation of the sensor the relay releases (connection between black and grey cable). As soon as the sensor is un-activated again the time measurements of the set time starts.
Sensing distance 4 - 12mm, adjustable
