SKU: 34-141160052

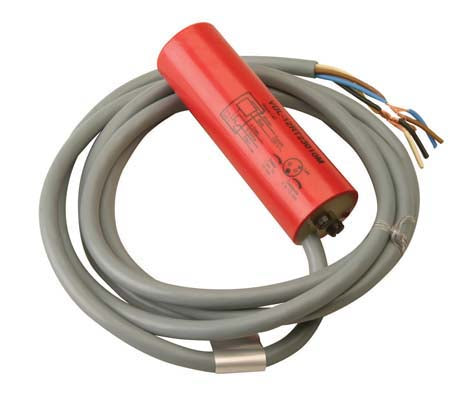

Proximity Switch 230v, 0-10min delay, 5 wire - with LED Light

Name: Proximity Switch 230v, 0-10min delay, 5 wire - with LED Light
Brand: VDL Agrotech
SKU: 34-141160052
Price: 126.00 GBP
Availability: InStock

£126.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

VDL Proximity switch with LED for Pan lines

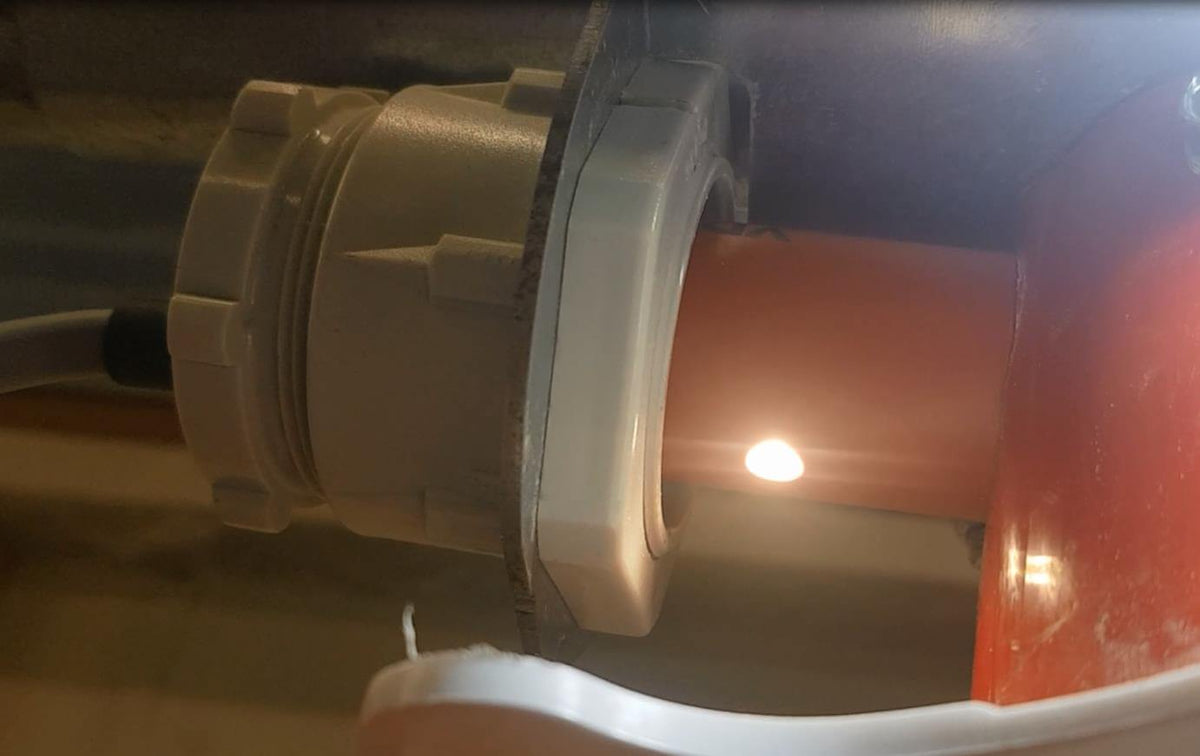

Excellent for use in end of line 'control' pans. The LED light illuminates the feed in the last pan encouraging the birds to eat from it, bringing on the feed system more often topping it up with fresh feed.

Capacitive sensor in thermoplastic polyester for mounting in PG36 screw gland. With adjustable sensing distance and with built-in time delay.

Sensing distance 4 - 12mm, adjustable
30mm diameter
5 wire
230v

Dalton Supplies is the UK distributor for VDL Agrotech Equipment.

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Proximity Switch 230v, 0-10min delay, 5 wire - with LED Light FAQs

What does a Proximity Switch 230v, 0–10min delay, 5 wire – with LED Light do in poultry feeding systems?

A Proximity Switch is used as an end‑of‑line control device in automated pan feeding systems. It detects feed presence in the final pan. When the feed is eaten away it uncovers the sensor and triggers it to re-start the pan line motor.

Why is LED lighting important on a Proximity Switch?

The LED light on the Proximity Switch illuminates the feed in the last pan, attracting birds to it. As birds eat from the lit pan, the system activates more frequently, topping up the line with fresh feed and improving overall feed circulation and bird intake. The light encourages birds to use the control pan more than the others.

What technical features does the Proximity Switch 230v, 0–10min delay, 5 wire – with LED Light offer?

The Proximity Switch features a capacitive sensor made from durable thermoplastic polyester, designed for PG36 screw‑gland mounting. It provides an adjustable sensing distance of 4–12 mm, a 30 mm diameter, and reliable 230v operation, making it ideal for pan feeder control applications.

Why choose a Proximity Switch with an LED Light with adjustable sensing distance?

Choosing a Proximity Switch with an LED Light with an adjustable 4–12 mm sensing range allows precise calibration for different feed types, pan designs, and environmental conditions. This ensures accurate detection, reduces false triggers, and maintains optimal feed flow at the end of the line.

What is a capacitive sensor used for in poultry feeding systems?

A capacitive sensor is used as an end of line control device in automated poultry feeding systems. When paired with an LED illuminated final pan, it encourages birds to eat from the last pan, triggering the feed line more frequently and ensuring fresh feed is consistently delivered.

Why choose a capacitive sensor with adjustable sensing distance?

An adjustable sensing range allows precise calibration based on feed type, pan design, and environmental conditions. This ensures reliable detection, reduces false triggers, and maintains optimal feed flow at the end of the line.

VDL Agrotech

VDL Agrotech are a member of the VDL Groep who manufacture and supply equipment for the modern livestock industry, operating for more than 50 years.

The product range comprises feeding and drinking systems, manure treatment, heating, cooling, ventilation and climate control systems.
