SKU: 33100697

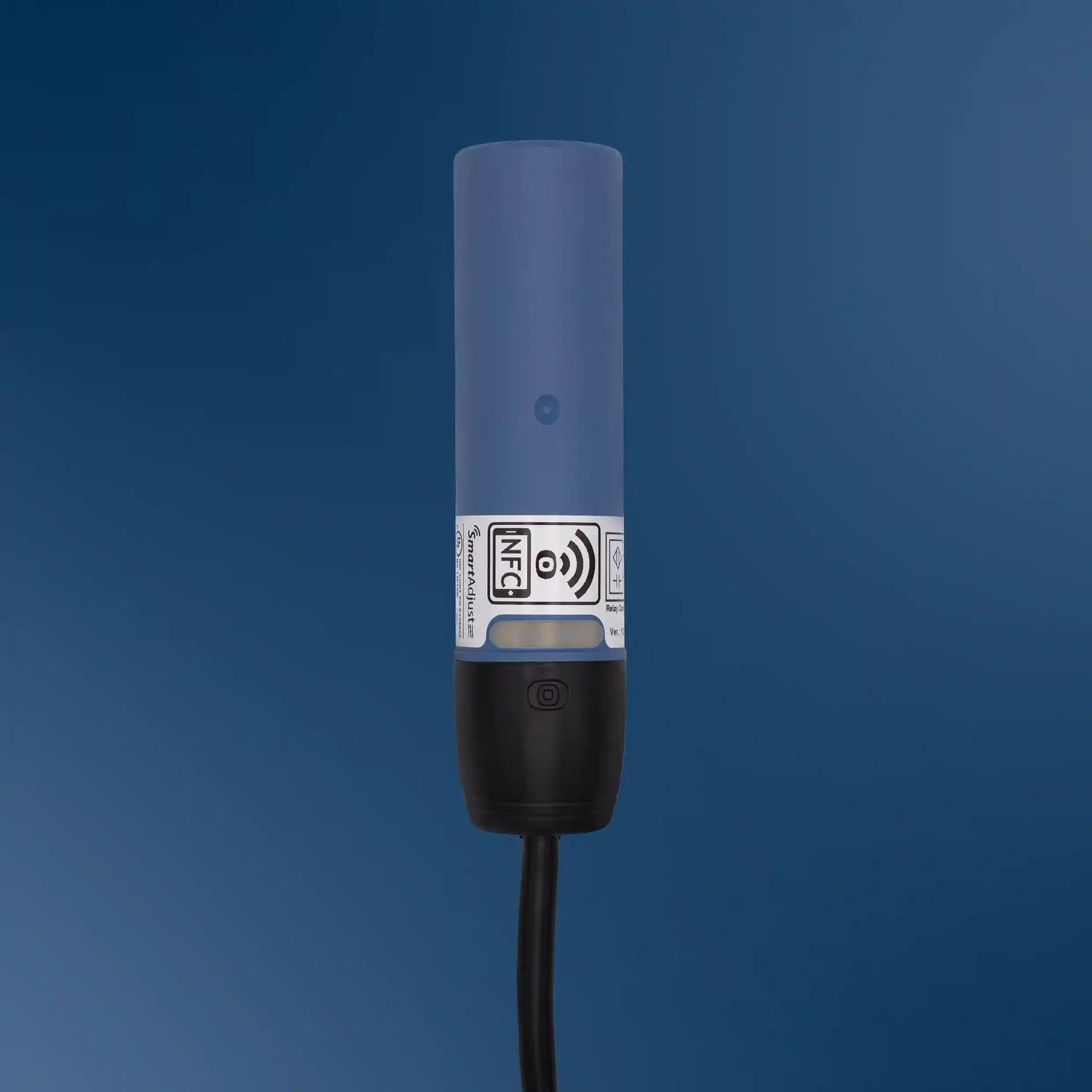

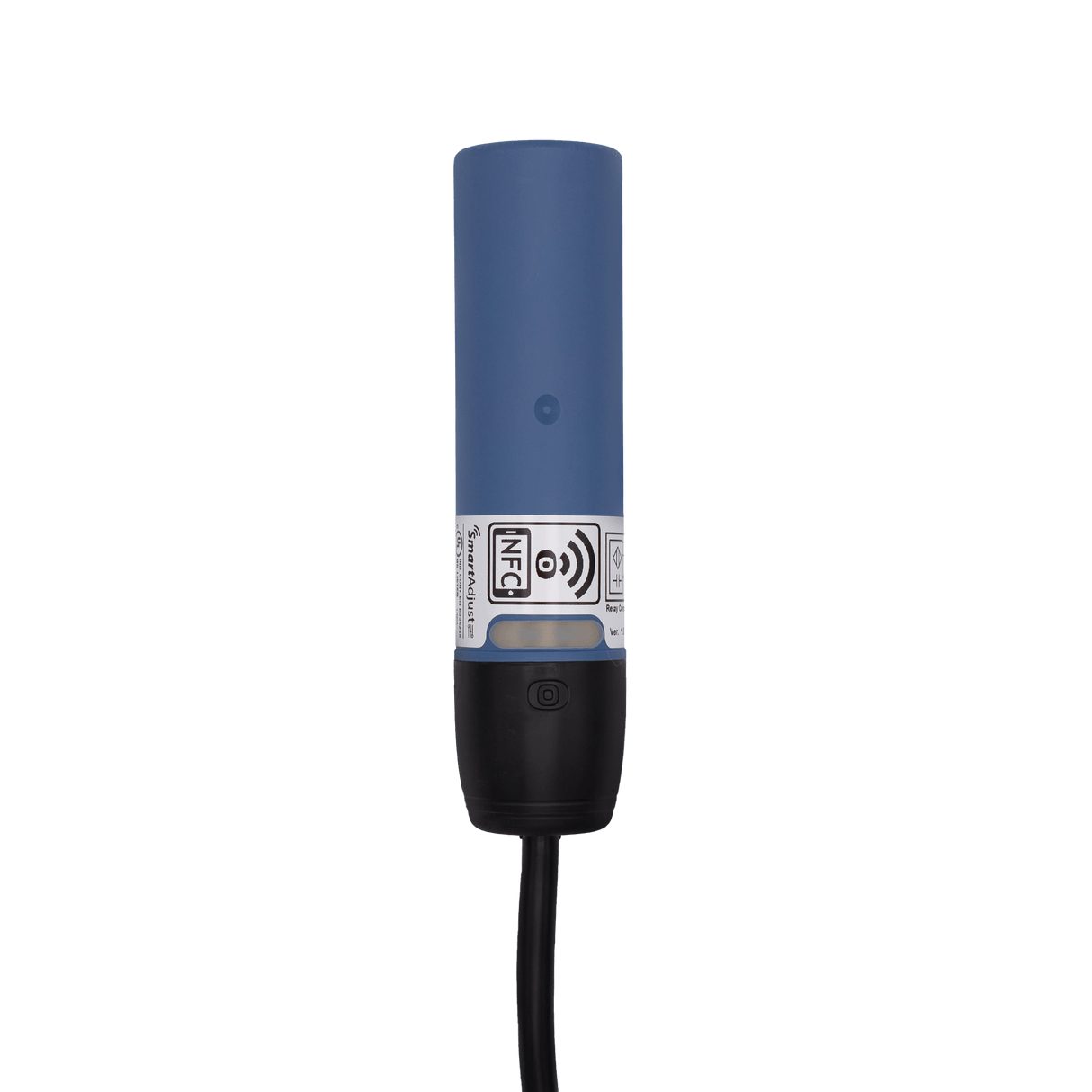

iDOL 28R (100697) Proximity Switch with LED, (20-280VAC) 5 wire

Name: iDOL 28R (100697) Proximity Switch with LED, (20-280VAC) 5 wire
Brand: DOL
SKU: 33100697
Price: 108.00 GBP
Availability: InStock

iDOL 28R 100697

£108.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

This sensor is a good all-rounder - Smooth Body, 5 wire sensor with a large 20-280v range.

By downloading the DOL SmartAdjust App it can be programmed to have:

Delay on 3600 seconds (1 Hour)
Delay off 3600 seconds (1 hour)
Sensitivity 0-20mm
Max run timer to 7200 seconds (2 Hours)
5A Max load
30mm Diameter

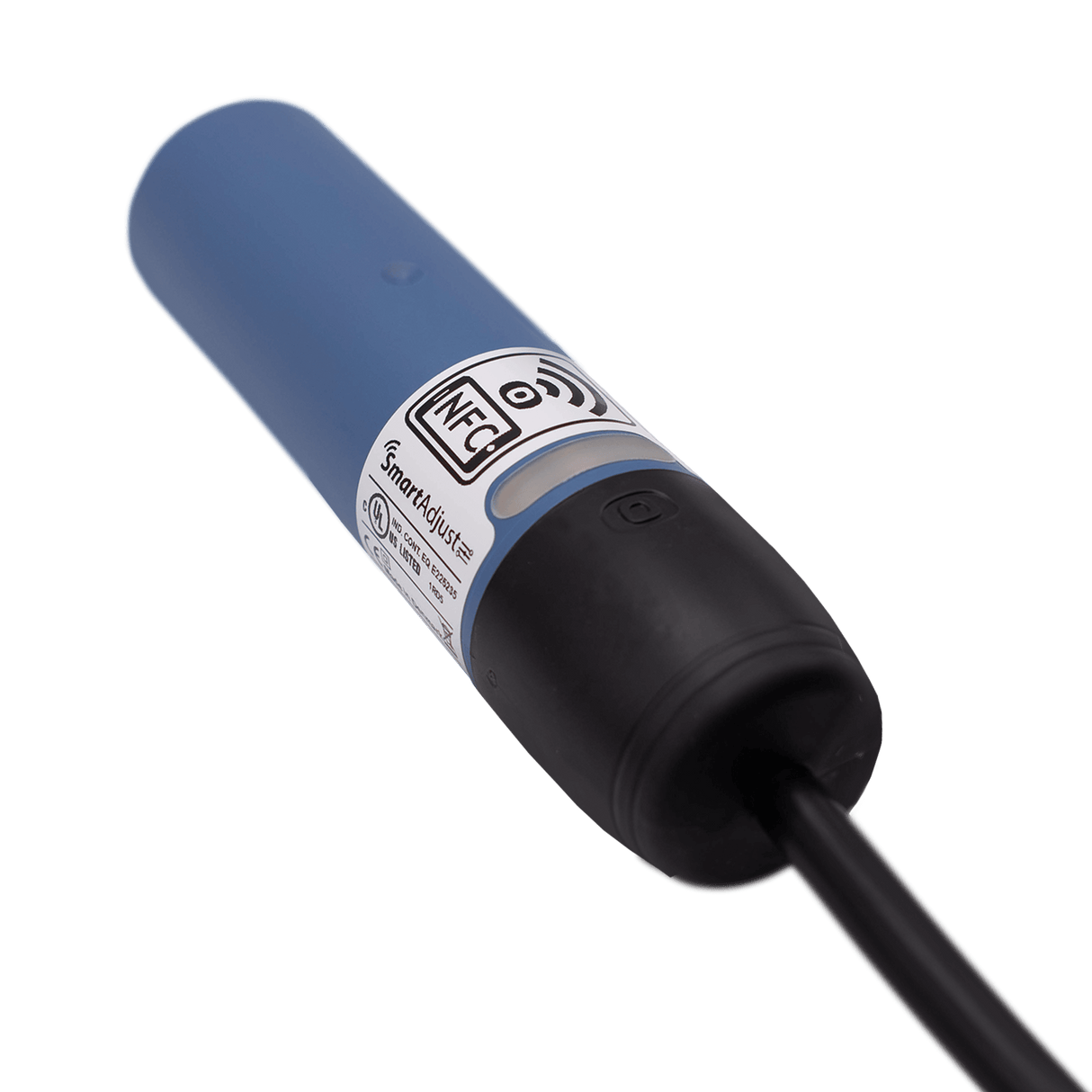

It has a controllable white LED for illuminating the last 'control' feed pan to attract the birds so it is the first to call for food, therefore keeping the other pans topped up with fresh feed. (This function can be switched off)

A capacitive relay sensor for detection of feed, grain and solids in a feeding system with a relay output including a function switch.

The iDOL 28R can be controlled via the SmartAdjust app:

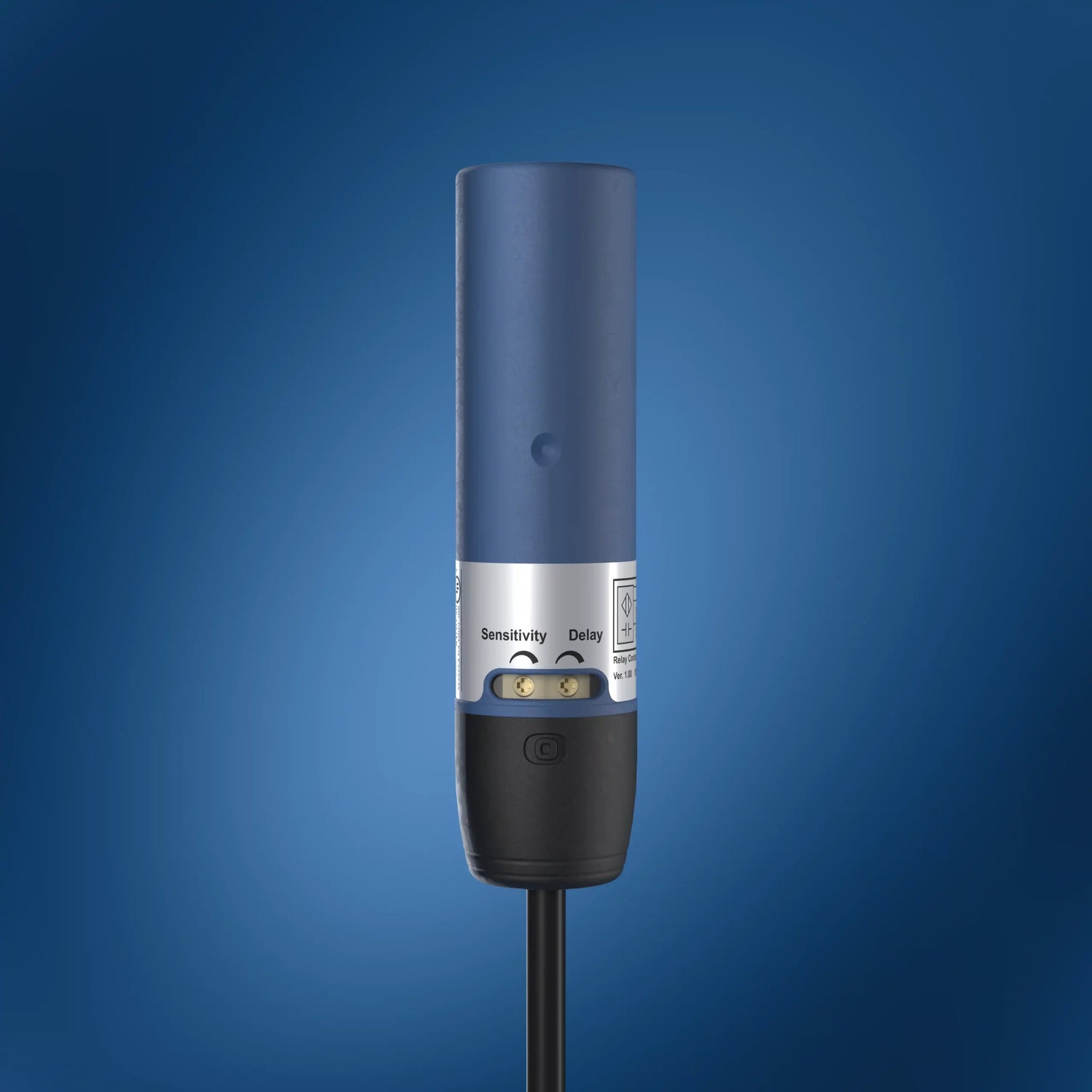

Delayed disconnection: fixed delay or delay can be adjusted on the trimmer or via the SmartAdjust app
Delayed connection: fixed delay or delay can be adjusted on the trimmer or via the SmartAdjust app
Sensitivity: fixed distance or distance can be adjusted on the trimmer or via the SmartAdjust app
MaxRun-timer: adjustable 1 to 7200 seconds via the SmartAdjust app

How to use

Techincal user instructions IDOL28

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 0 - 0.99 kg DPD £3.90 plus VAT
* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

iDOL 28R (100697) Proximity Switch with LED, (20-280VAC) 5 wire FAQs

What is a DOL capacitive sensor?

A DOL capacitive sensor is an electronic device that detects changes in capacitance to sense the level of materials such as feed, grain, or liquids. It is often used in farms, silos, and feeding systems. DOL is a world leader in the manufacture of the sensors.

What can a capacitive sensor detect?

It can detect both solid and liquid materials, including feed, grain, pellets, sawdust, water, and oil. Unlike mechanical switches, it has no moving parts, making it more reliable.

How does a capacitive sensor work?

The sensor creates an electric field around its probe. When material comes close to or touches the probe, the sensor detects a change in capacitance and switches its output on or off.

Do capacitive sensors require maintenance?

Only minimal maintenance is needed. Regular cleaning of the sensor surface helps ensure accurate detection, especially in dusty or sticky environments.

How do I adjust the sensitivity?

Most DOL capacitive sensors have a sensitivity screw and timer screw. Turning the sensor screw up makes the sensor detect materials farther away; turning it down makes it less sensitive to light or unwanted materials. The timer screw adjusts the length of time the sensor operates. iDOL sensors are easily connected to the DOL app and both the time and sensitivity can be adjusted by using your phone.
