SKU: 162713

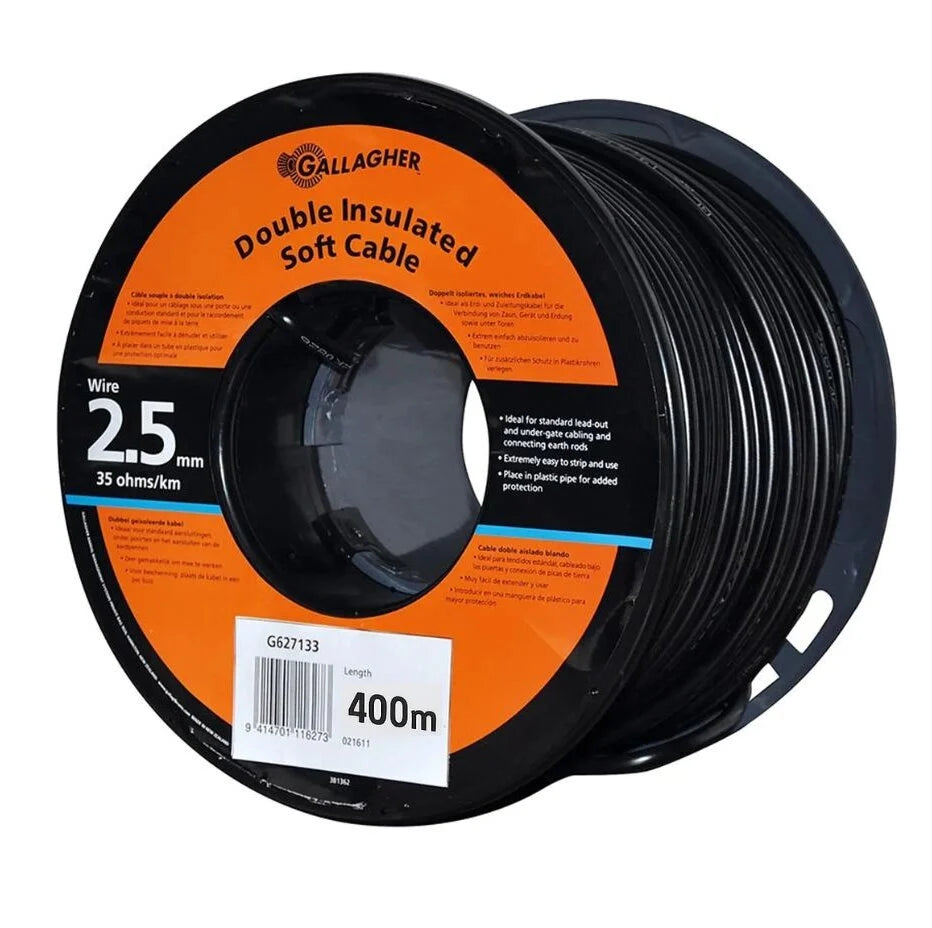

Gallagher Ground Cable ø2.5mm 400 metres - 35 Ohm/1km

Name: Gallagher Ground Cable ø2.5mm 400 metres - 35 Ohm/1km
Brand: Gallagher
Price: 564.00 GBP
Availability: InStock

2.5mm Gallagher Lead Out Cable

£564.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

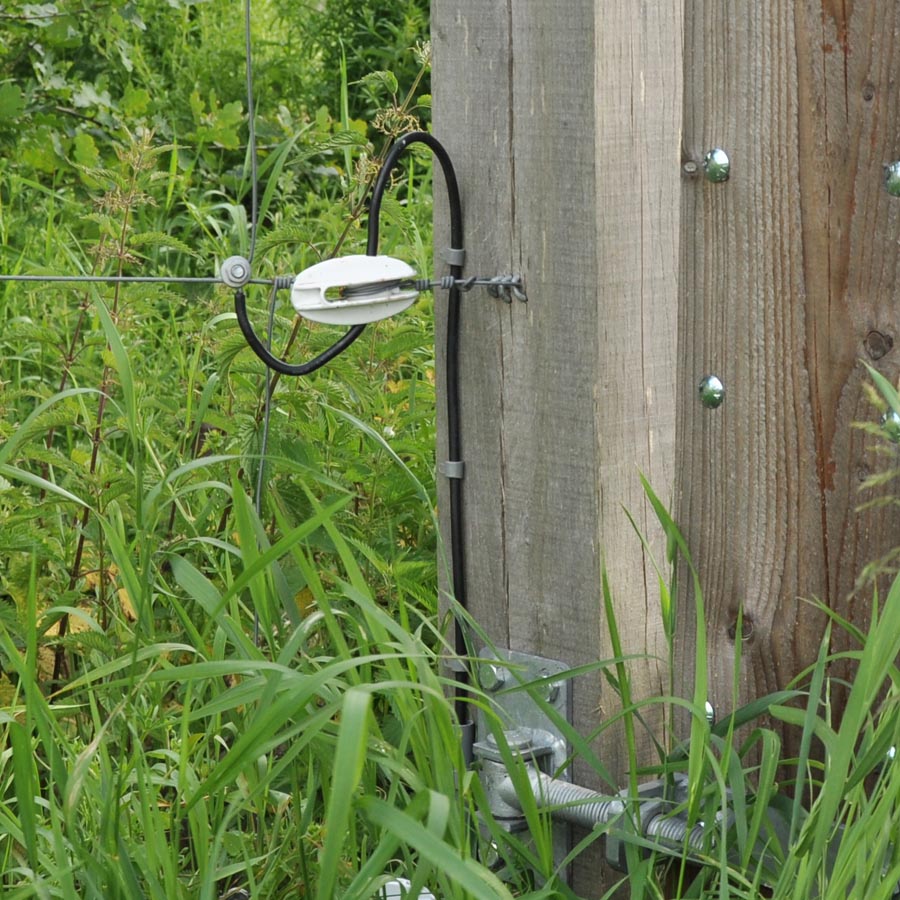

Ground cable is used to connect the energiser to the fence and the earth rods. The cable is also used to make underground fence connections, for instance, under gates or openings.

2.5mm aluminium coated wire with 4 x the conductivity of 2.5mm galvanised wire
Heavy duty double insulation with tough polyethylene covering for extra protection and abrasion resistance
Medium tensile 2.5mm wire makes cable easy to work with
Also suitable for use between earth pegs in earth system
Resistance: 8.5 Ohms per kilometre/13.6 Ohms per mile
Should be laid in plastic pipe for physical protection when used underground
Use High Conductive Lead Out Wire from start of the fence to middle of the fence system to complete the optimum lead out setup (recommendation is for lead out lengths of 0.5-2km)

Specification:

Voltage (kV) at 2km of fence: 6.4kV
Voltage (kV) at 5km of fence: 5.0kV
Voltage (kV) at 10km of fence: 3.6kV
Diameter or Tape Width: 2.5mm
Ohms Per Km: 8.4
Warranty: 10Year
Product Length: 400m
Product Weight: 27.5kg
Contents: 1
Conductor Type: Cable

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Gallagher Ground Cable ø2.5mm 400 metres - 35 Ohm/1km FAQs

What is the Gallagher Ground Cable used for?

Gallagher Ground Cable is designed to carry power underground between your energiser and fence, or underneath gateways and tracks where standard fence wire cannot be used. It is heavily insulated to prevent power loss into the ground.

How far can this cable carry electricity?

The 2.5mm galvanised steel core provides excellent conductivity for underground runs. It is suitable for long-distance connections between energisers, earth systems, and fence lines while minimising voltage loss.

Can this cable be used above ground as fence wire?

No. This cable is intended for underground power transmission, not as a live fence conductor. The thick insulation prevents animals from receiving an electric shock if they touch it.
