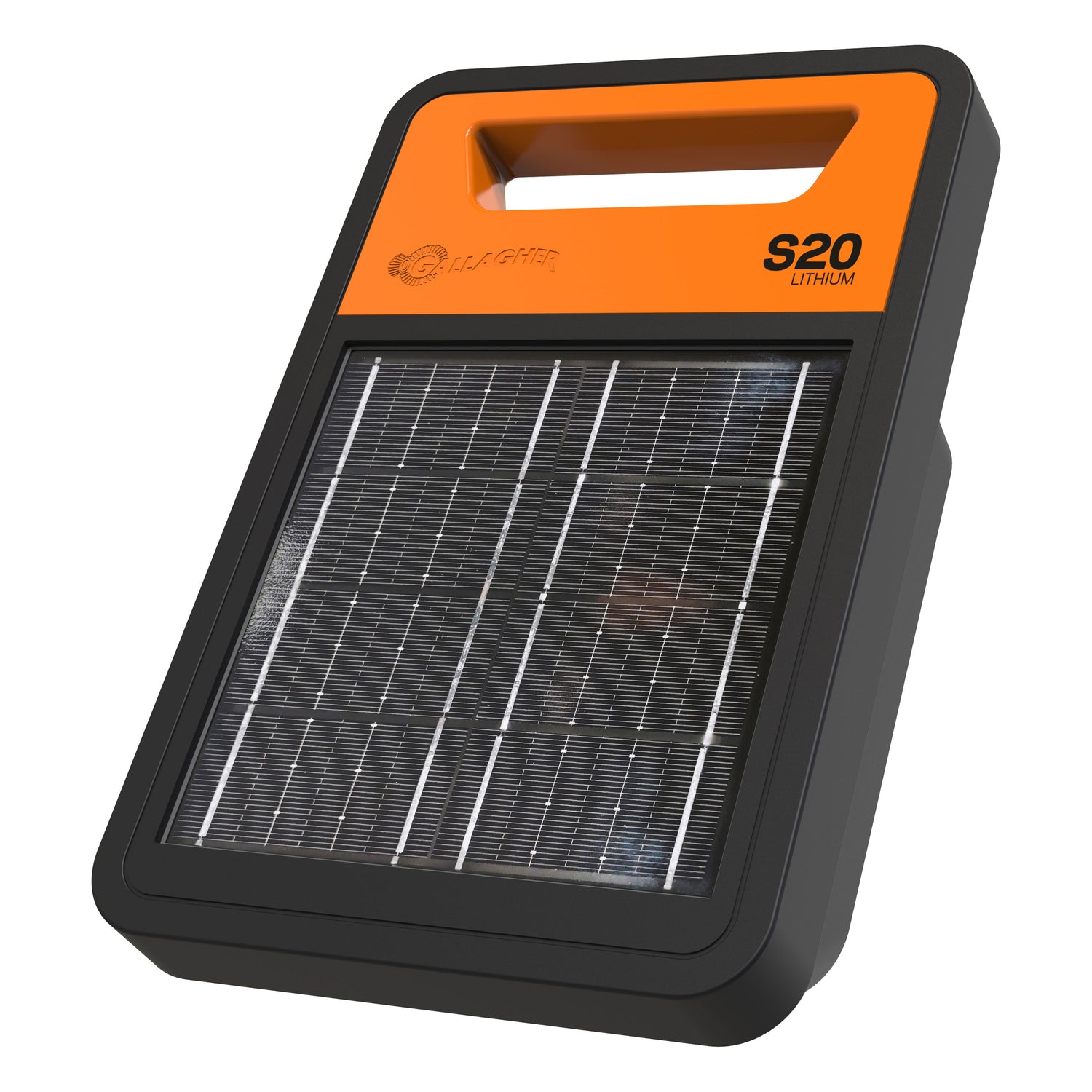

Gallagher S20li Solar Powered Energiser Inc Lithium Battery | ST |

Horses react to electric shocks, so it’s important to have a steady voltage (usually at least 3,000–4,000 V) all along the fence. They usually need longer fencing for paddocks and strip grazing. Plants and grass can lower the voltage, so having extra power keeps the fence working well.

We think the Gallagher S30 is generally the best option for horses because:

• It provides higher power and longer range, ensuring consistent voltage even with vegetation
• Lithium battery ensures reliable performance year-round
• Horses need a dependable fence to prevent escapes and injuries

• Position: Point the solar panel facing south (if you're in the Northern Hemisphere)

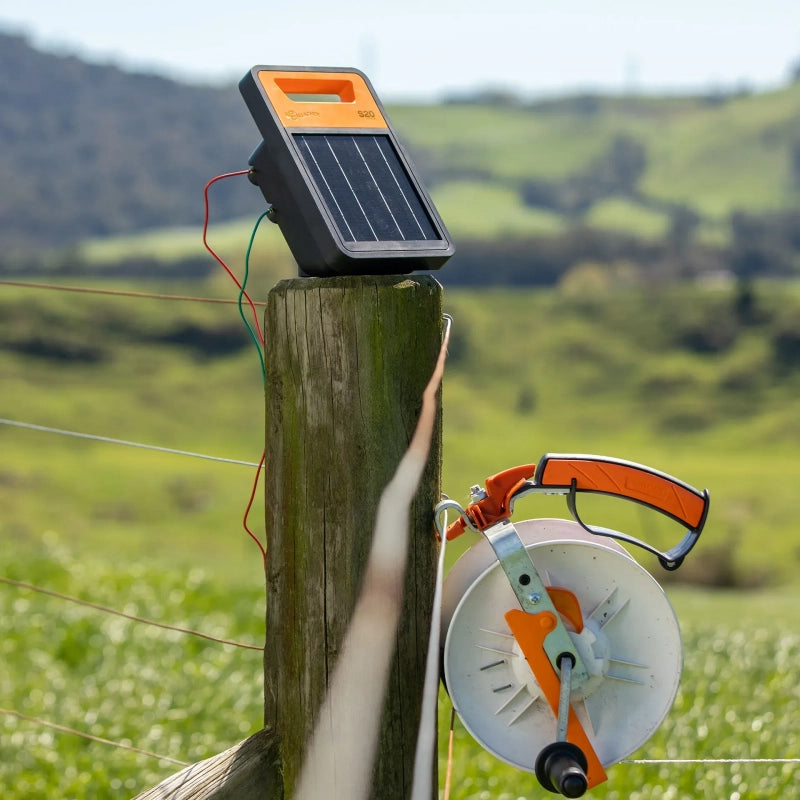

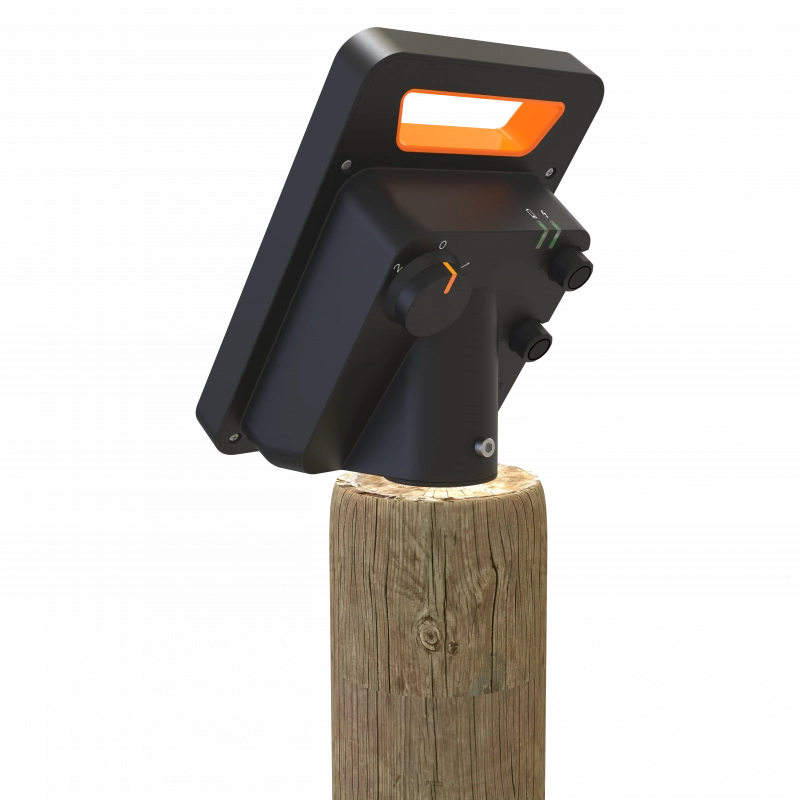

• Mounting: Use a post or earth stake; avoid shade and tall grass covering the panel.

Connections:

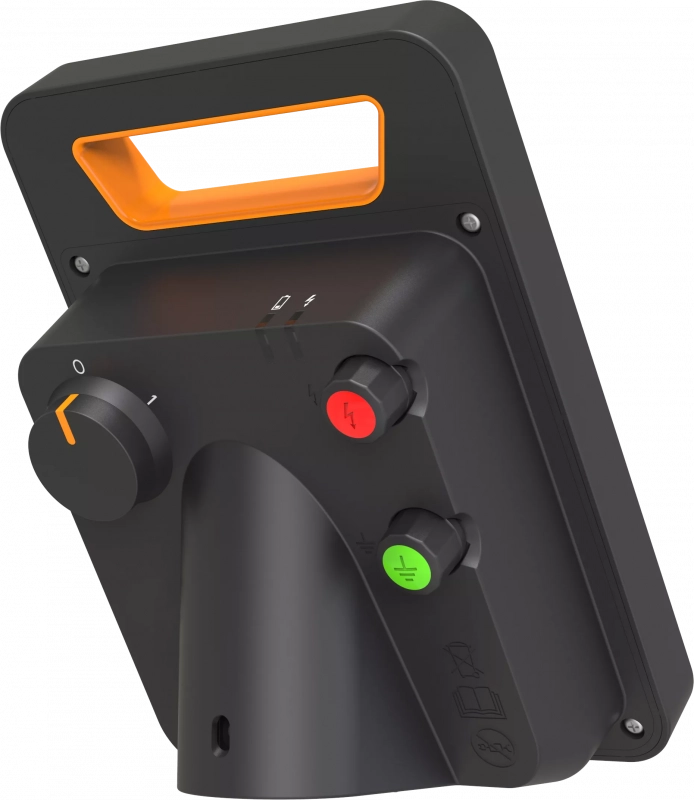

✅Red lead → fence wire
✅Green lead → earth stake (at least 60 cm deep)

• Pre-charge: Leave in sunlight for 1 day before first use.
• Turn ON and check LED indicators (green = OK, red = low battery).

Model Recommendations:

• S16: Suitable for small paddocks or temporary strip grazing with minimal vegetation.
  Pros: Affordable, portable.
  Cons: Limited power (0.16 J), shorter range (1.5 km max)
• S20: Better for medium-sized horse paddocks.
  Pros: Lithium battery (fast charging, long life), 2 km range, adaptive energy control.
  Cons: Slightly higher cost.
• S30: Best for large paddocks or areas with vegetation.
  Pros: Stronger pulse (0.30 J), up to 3 km range, lithium battery for reliability.
  Ideal for permanent setups or multiple horses.


Runs for as long as 20 days without UV light, powered by its built-in 6 V rechargeable battery (4Ah)

Battery indicator:

• Green flashing: Battery OK
• Red flashing: Low battery—clean solar panel and ensure sunlight exposure

Battery replacement: Use Gallagher-approved or equivalent 6V rechargeable batteries.

Low voltage or weak shock:

• Inspect for any plants contacting the fence
• Make sure the earth stake is correctly installed and the soil is damp
• Clean the solar panel to ensure efficient charging

Flashing red light: The battery requires charging or replacement.

If there is still no output, use a fence voltage tester and check all connections.

The Gallagher S Range includes portable electric fence energisers powered by solar energy, intended for locations lacking mains electricity. They come with:

• Built-in solar panels and rechargeable batteries that enable continuous operation throughout the year
• Energy management that adjusts to preserve battery life during periods of low sunlight
• Durable, weatherproof, and impact-resistant housings suitable for outdoor environments
• Lithium versions (S20li, S30li, S60li, S80li) provide charging speeds three times faster and battery longevity three times greater than lead-acid models


Selection depends on your fence length:

• S16 → up to 1.5 km
• S20 → up to 2 km
• S30 → up to 3 km
• S40 → up to 4 km
• S100 → up to 10 km
• S200 → up to 20 km
• S400 → up to 30 km

Stored energy: ranges from 0.12 J (S12) to 4.0 J (S400).
Animal type: Horses and cattle need higher voltage and longer range (S30 or above recommended for horses).
