SKU: 384306

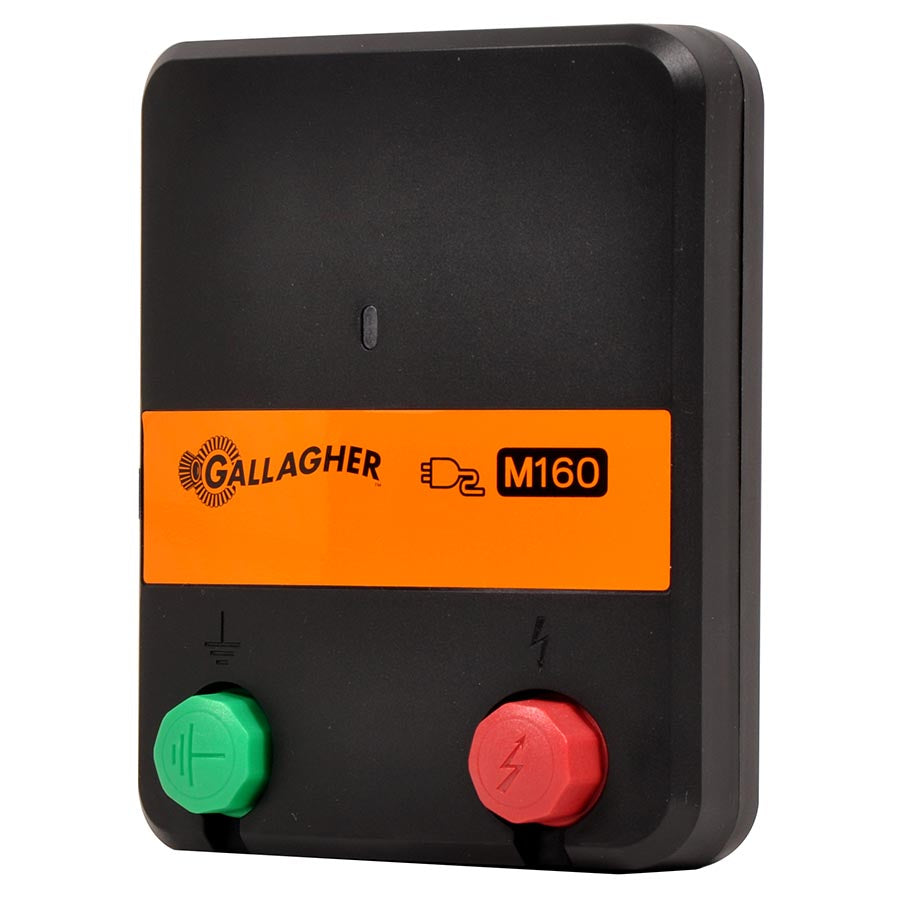

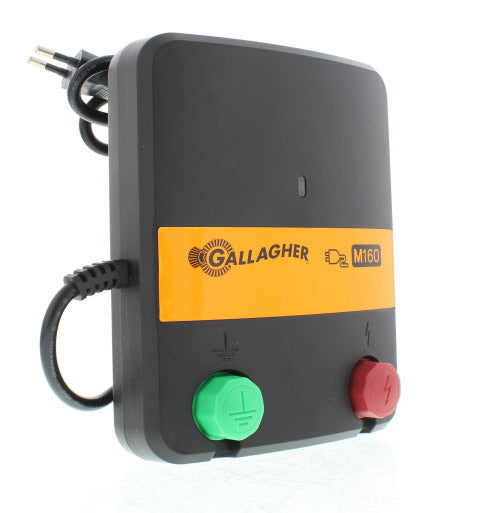

Gallagher M160 mains electric fence energiser - 230Volt | ST |

Name: Gallagher M160 mains electric fence energiser - 230Volt | ST |
Brand: Gallagher
Price: 132.00 GBP
Availability: InStock

£132.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

This product is suitable for:

The M160 energiser belongs to the Gallagher PowerPlus range. This series offers modern and durable energisers that can be used flexibly in various ways. This particular model generates a maximum voltage of 7,600 volts and has a charging energy of 1.5 joules. It is appropriate for use with horses, cattle, and domestic animals such as dogs, cats, or rabbits. The Gallagher M160 electric fence effectively powers both short and medium-length fences. Depending on the fence's growth, the device can support fence lengths up to 9 kilometres. The M160 electric fence provides consistent performance and includes built-in lightning protection for enhanced safety. It is simple to install on the fence and combines strong performance with straightforward and easy handling.

The M160 is designed for multi-strand fences up to 9km long and features very easy installation. The unit also includes integrated lightning protection.

Specifications:

Maximum output voltage 7700V
Charging energy 1.6J
Maximum impulse energy 0.6J
Number of earthing rods required: 2 x 1m
Multiwire distance – ideal conditions 9km
Multiwire distance – light growth 3.5km
Multiwire distance – dense growth 1.8km
Fence surface 6ha

Product Download

Manual

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 0 - 0.99 kg DPD £3.90 plus VAT
* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Gallagher M160 mains electric fence energiser - 230Volt | ST | FAQs

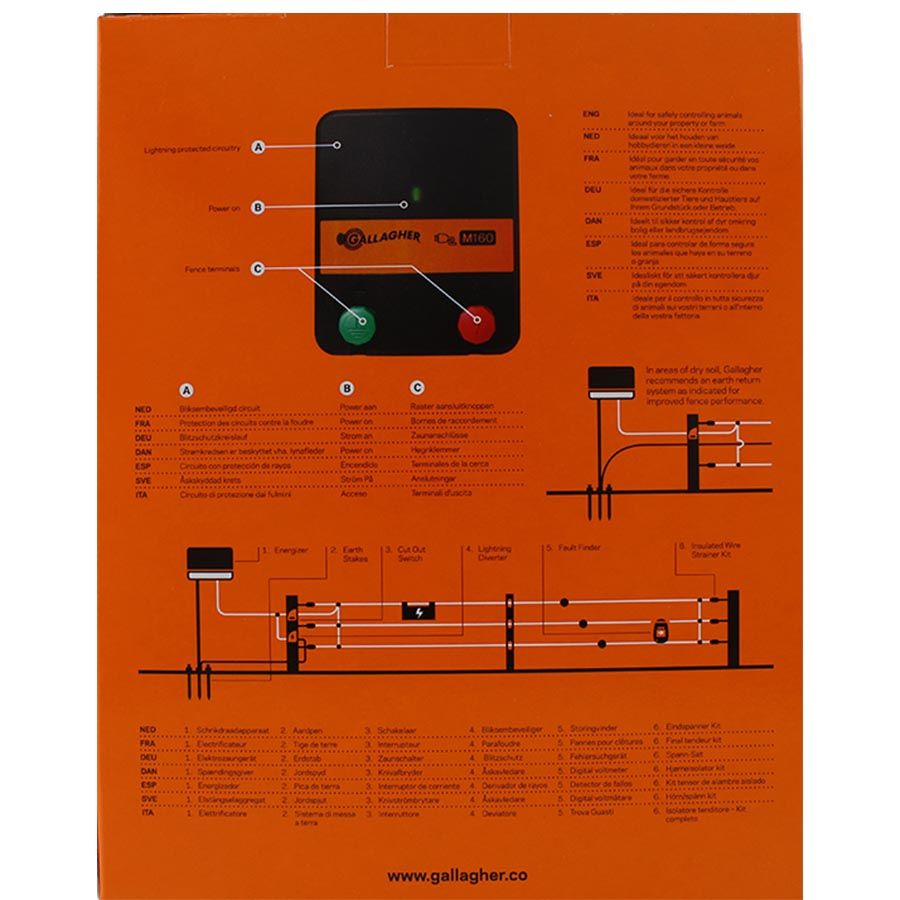

How do I install and earth an M energiser correctly and how many earth rods?

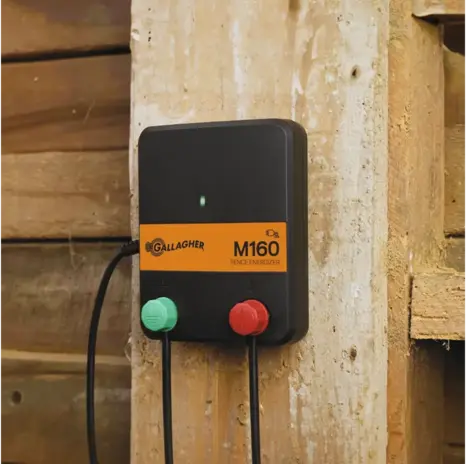

Mount the unit under cover near a mains outlet, then build a solid earth system, the most common cause of low fence voltage is poor earthing. Typical installs use multiple 1m earth rods, driven into permanently damp soil and spaced well apart.

All M‑range energisers include lightning protection as standard, and www.daltonsupplies.com also offers add‑on lightning diverters if you want extra surge defence on long lines.

Earth Rod recomendations:

What's the real difference between the standard M models and the i-Series like the M5000i?

The standard M models are all about being tough and easy to use, with built-in lightning protection, LEDs, and a simple setup, perfect if you just want dependable power for your fence. On the other hand, the i-Series (like the M5000i) come with a weatherproof external display, adaptive output, and you can add a Wi-Fi Gateway plus an app for instant alerts. They also work with fence monitors to help zone in on faults, which is handy for bigger, more complicated setups.

Which M‑series model should I choose for my fence length and animals?

Gallagher’s M‑range spans small paddock units like M120/M160 up to higher‑output units such as M650/M950/M1400, plus the smart M5000i at the top end. As a very rough guide based on multi‑wire and ideal conditions:

M120 up to 8km; hobby/small paddocks
M160 up to 9km; still small runs but a step up in stored energy
M350/M550/M650 up to 28/35/40km; suit mixed livestock and longer perimeter lines
M950/M1400 up to 42/55km; higher load/vegetation and larger blocks
M5000i (i‑Series) up to 100km and adds smart diagnostics/monitoring

Gallagher

Since 1938, Gallagher have been helping farmers to harness the power to farm by delivering world-leading animal management solutions, that enable customers to operate responsibly, productively, and profitably.

They lead the market in electric fencing, weighing and electronic identification (EID) and data collection.
