Gallagher Galvanised Double Earth Stake inc 3m cable | ST |

Having good earthing is really important for your fencing to work right. Electric fencing works as a circuit with current flowing through it. The current travels through the conductor, then through a person, animal, or plants to the ground, and comes back to the energiser through the earth peg. Dry or rocky ground doesn’t conduct the current well, so it’s key to use the recommended number of earth pegs and check that the earthing is enough. If the connection between the earth and the energiser isn’t solid, your electric fence won’t work properly.

It also finishes the circuit so animals actually get a shock. The energiser sends a high-voltage pulse along the fence; when an animal touches the live wire, the current flows through the animal into the ground and comes back to the energiser through the earth stake. If the earth connection isn’t good, the circuit stays open, and the shock is weak or doesn’t happen at all.

It controls how strong the shock is and how well the fence works daily. Bad earthing is the main reason for “low volts on the fence” and fences that don’t keep animals in properly. Fixing the earth system usually brings back full fence voltage and makes animals respect the fence again.

It keeps people, animals, and your energiser safe. A good ground path helps get rid of surges and cuts down on stray-voltage problems; combined with a lightning diverter, it also gives surges a safe way to go to earth instead of passing through the energiser.

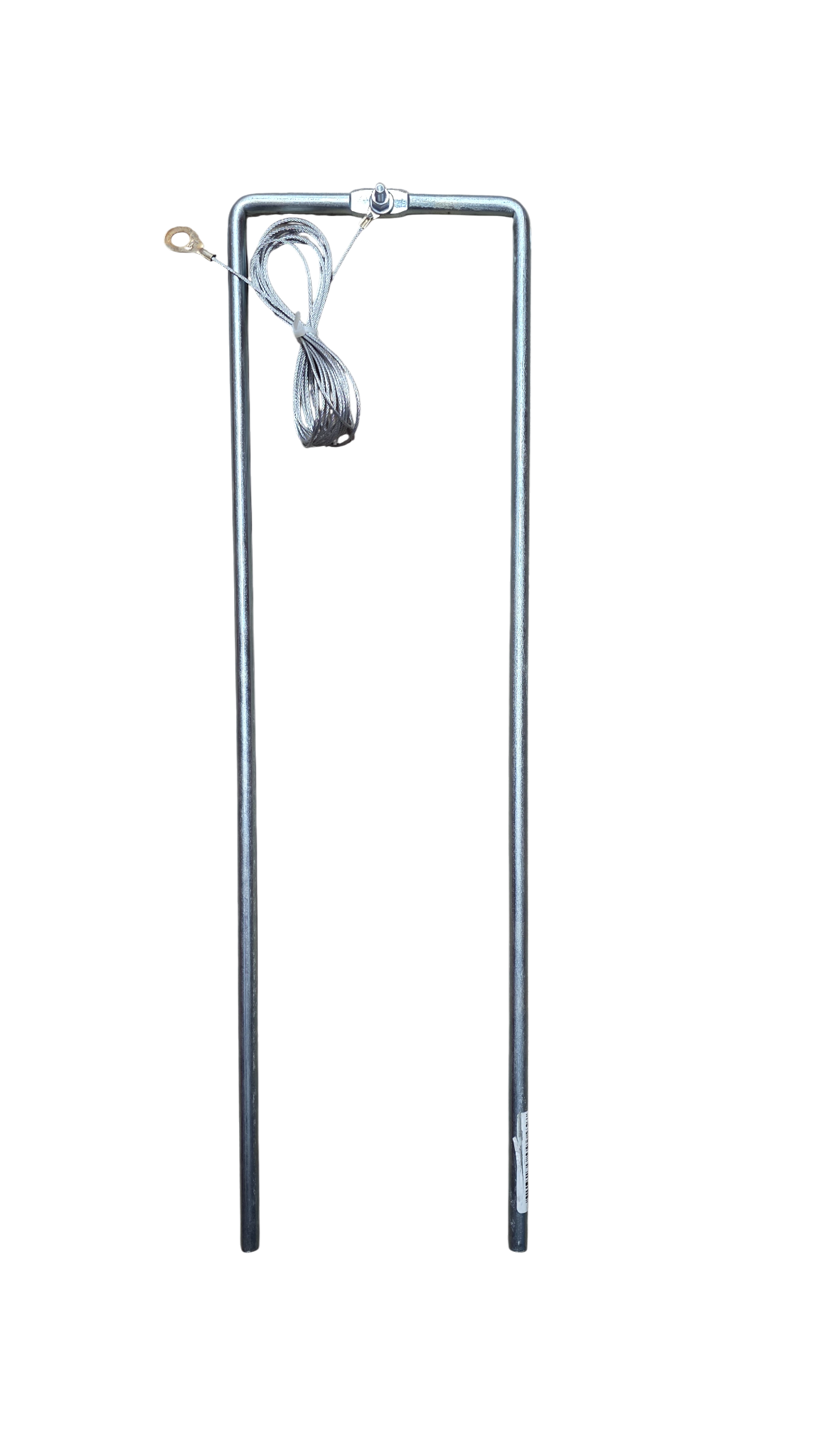

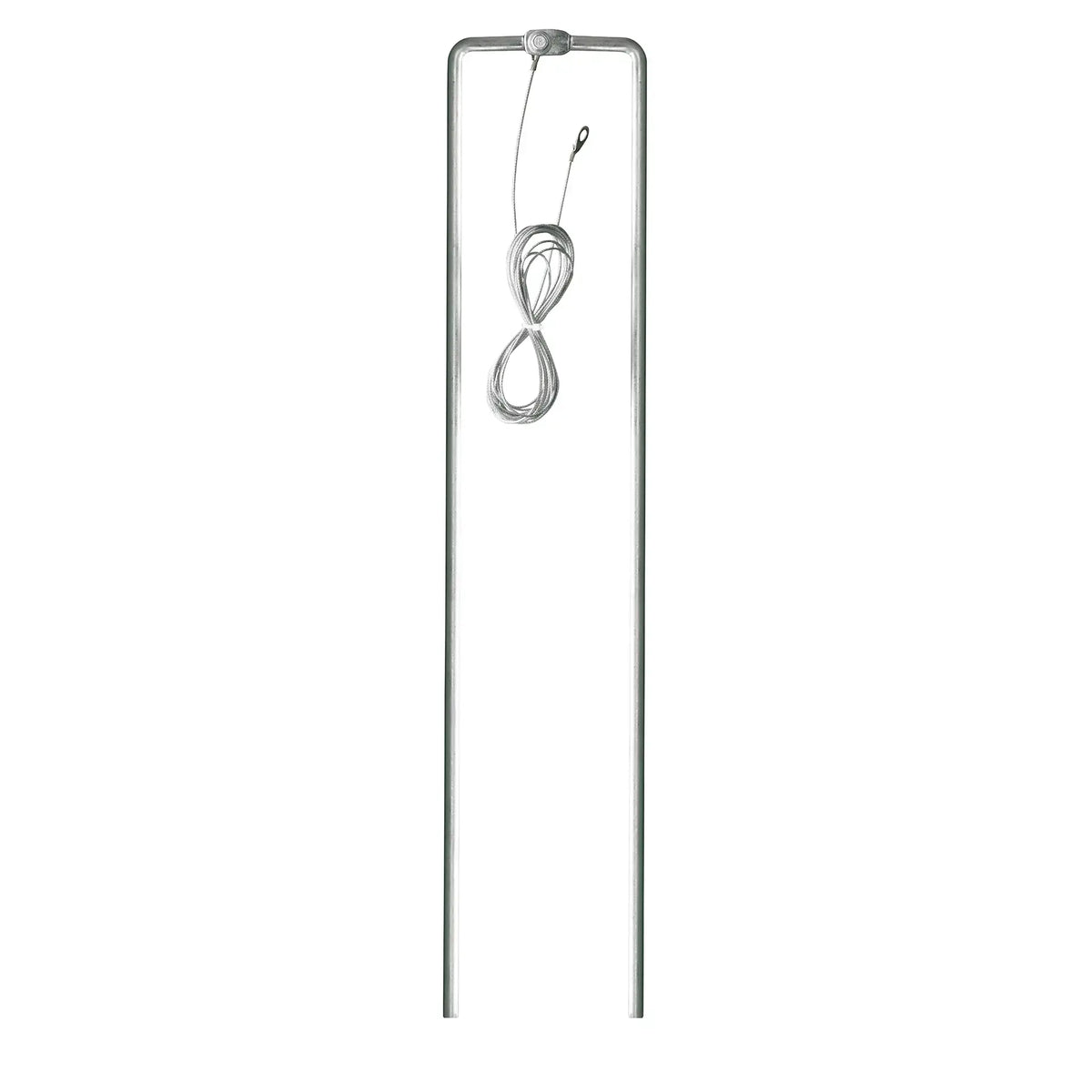

The Gallagher Galvanised Double Earth Stake is a handy, portable grounding kit made up of two 0.5 m galvanised stakes with a 3m lead. It’s designed to have similar conductivity to a single 1m earth stake, making it easier to drive in and remove—perfect for mobile or temporary setups like battery or solar systems. Gallagher usually suggests shorter stakes for battery or portable energisers and longer ones for mains units (like 1m for 12V/battery devices and 1.7–2.0m for mains energisers). So, the double 0.5m stakes are great for mobile energisers, while fixed mains systems generally go for longer rods.

When installing a multi-rod earth system, drive the stakes into consistently moist soil (as damp ground enhances conductivity) and space the earth rods approximately 3 m apart.

In conditions where the soil is dry, rocky, or frozen, consider using an earth-wire return fence design (with one wire earthed in the fence) to ensure shock effectiveness despite poor soil contact.

For safety reasons, avoid placing the earth system within about 10 m of power, telecom, or other utility earths to prevent stray currents and interference.

Yes, they have conduction equal to a 1m earth stake, and are made from 8mm galvanised steel to last a long time, it also comes with a 3m cable for quick connection—designed especially for mobile 9V/12V solar energisers when you’re often changing locations.

For small battery-powered or portable energisers, a single earth stake measuring 0.5 to 1 metre is usually adequate; a pair of 0.5 metre stakes can provide the equivalent of 1 metre in a compact setup.

For mains-powered units, DaltonSupplies.com recommends using longer stakes (at least 1.7 to 2.0 metres) and multiple rods; for instance, a minimum of three 2-metre stakes spaced 3 metres apart is advised for Gallagher M150/M300/M500-class energisers—similar scaling applies for larger devices.
