SKU: 038332

Gallagher M50 Mains Electric Fence Energiser - 230volt 0.5 joule | ST |

Name: Gallagher M50 Mains Electric Fence Energiser - 230volt 0.5 joule | ST |
Brand: Gallagher
Price: 84.00 GBP
Availability: InStock

£84.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

This product is suitable for:

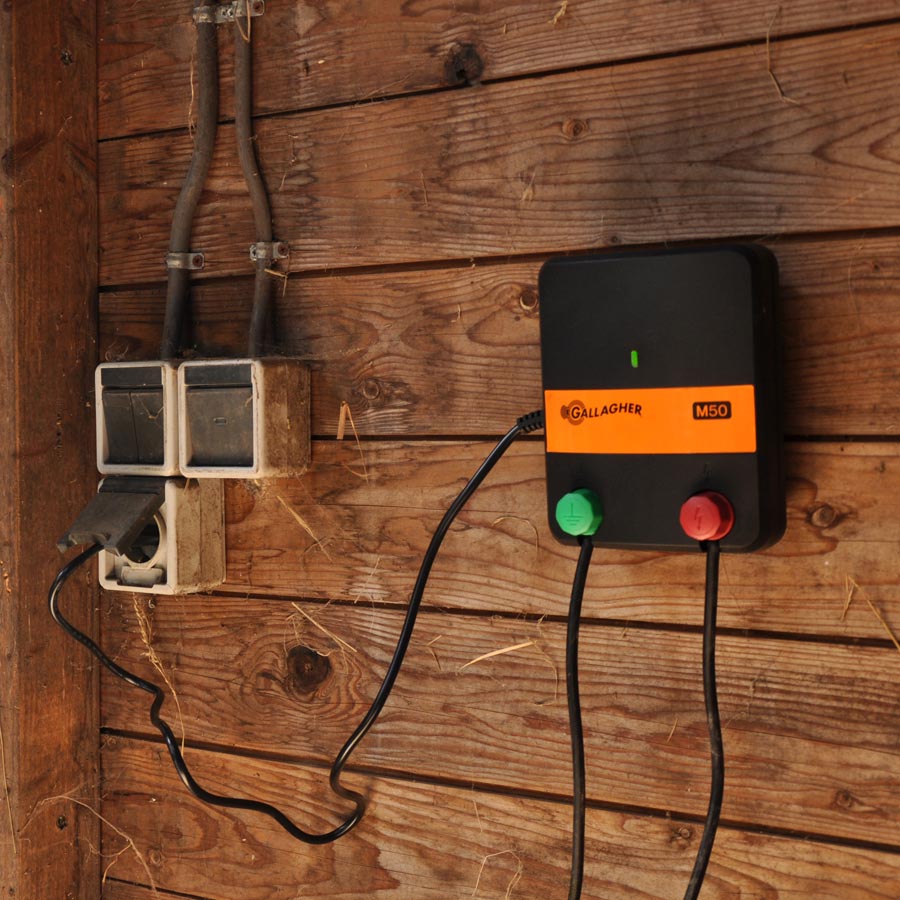

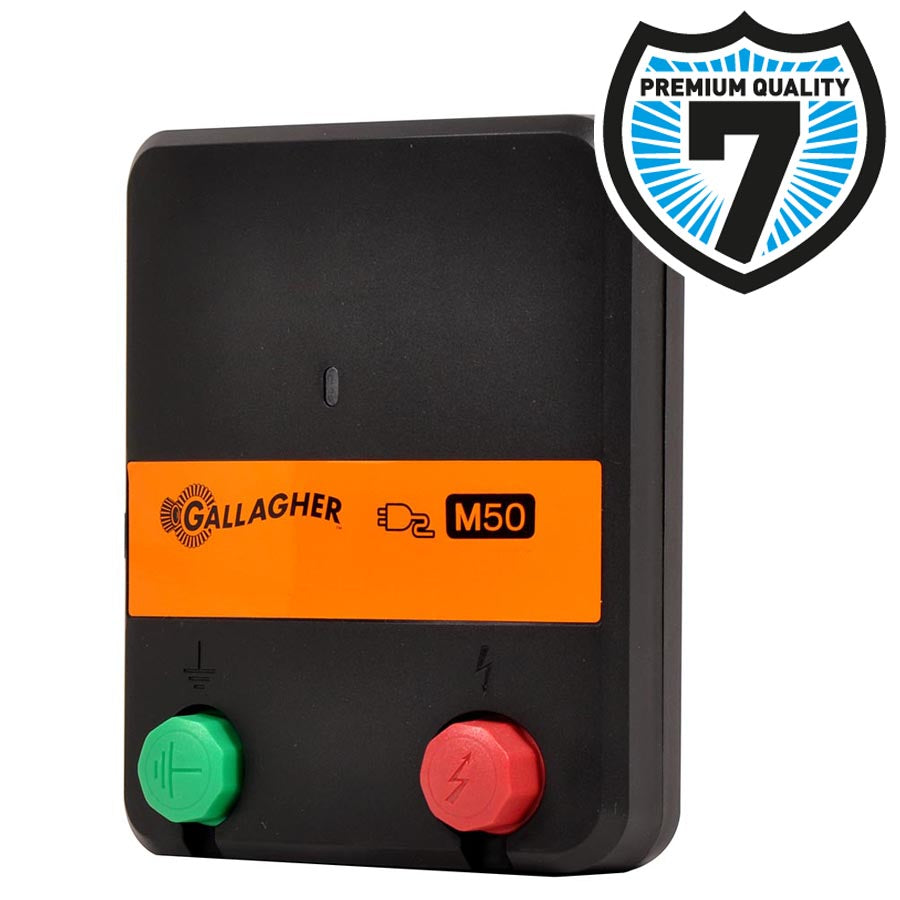

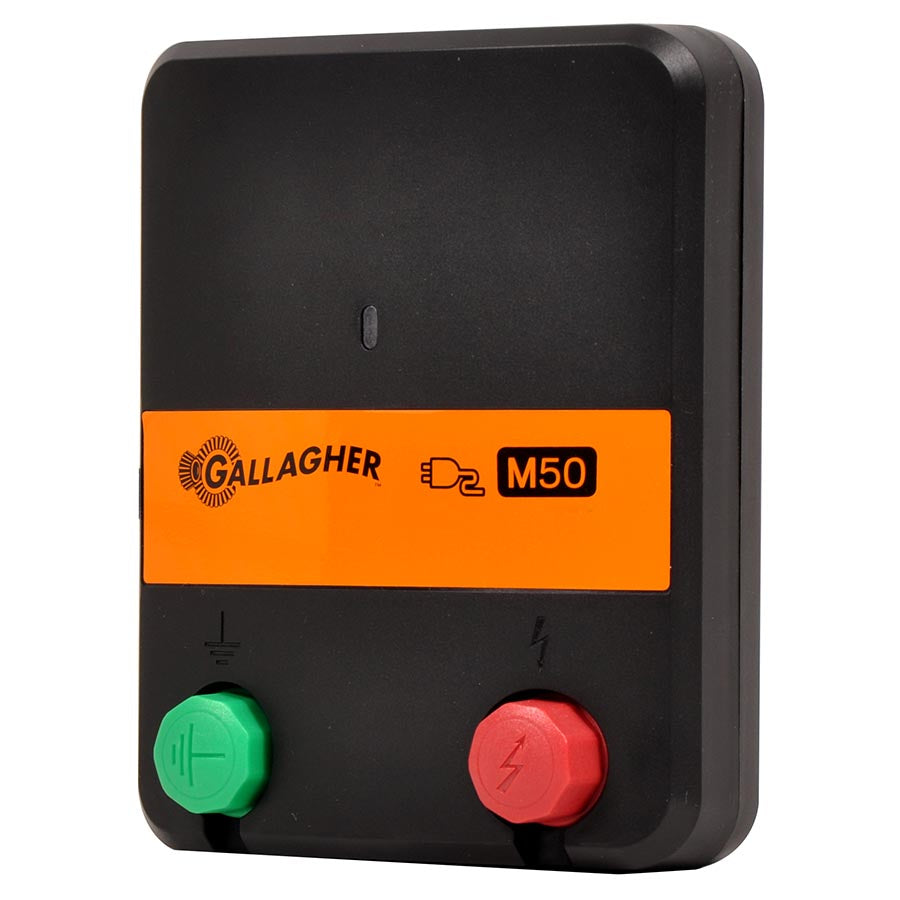

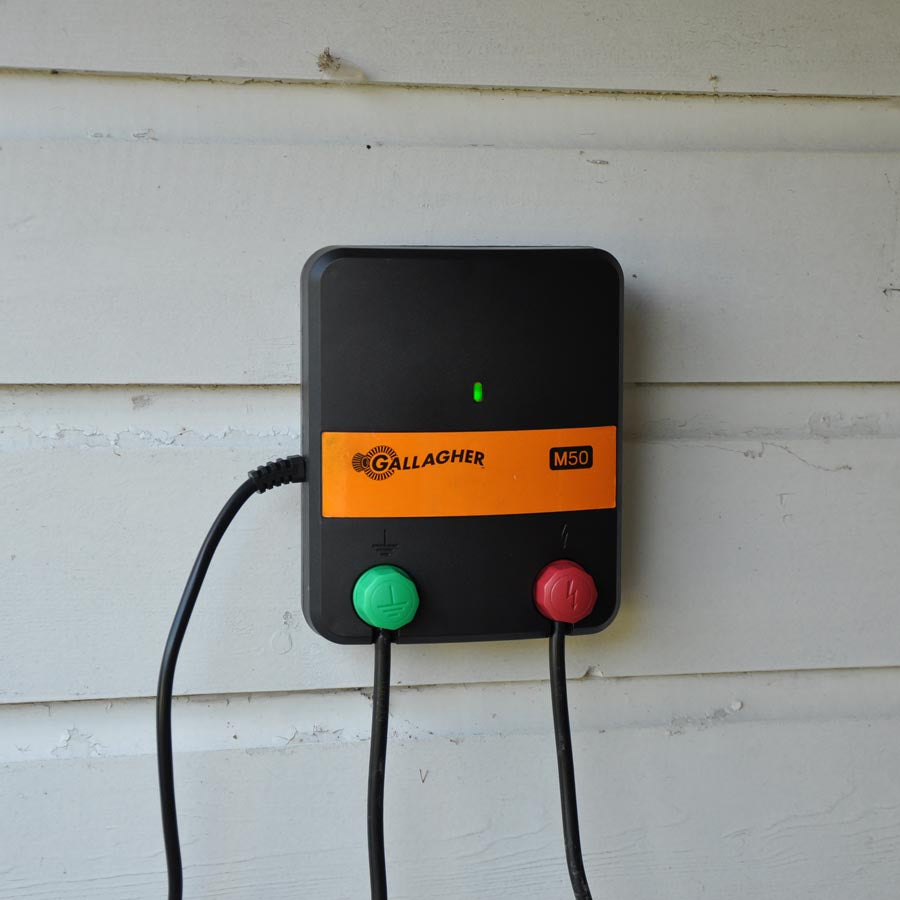

Gallagher M50 mains fence energiser 230Volt

The M50 is a mains fence energiser, suitable for short fences up to 4km. The M50 is easy to operate and is ideal for keeping pets like rabbits, dogs and cats in or for keeping small predators out. It is often used in gardens up to 120m2.

Installation is easy. The energiser also uses minimal power and ensures reliable animal control with built in lightning protection.

Specifications:

Maximum output voltage 6200V
Charging energy 0.5J
Maximum impulse energy 0.3J

Product Download

Manual

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

Gallagher M50 Mains Electric Fence Energiser - 230volt 0.5 joule | ST | FAQs

How do I install and earth an M energiser correctly and how many earth rods?

Mount the unit under cover near a mains outlet, then build a solid earth system, the most common cause of low fence voltage is poor earthing. Typical installs use multiple 1m earth rods, driven into permanently damp soil and spaced well apart.

All M‑range energisers include lightning protection as standard, and www.daltonsupplies.com also offers add‑on lightning diverters if you want extra surge defence on long lines.

Earth Rod recomendations:

What's the real difference between the standard M models and the i-Series like the M5000i?

The standard M models are all about being tough and easy to use, with built-in lightning protection, LEDs, and a simple setup, perfect if you just want dependable power for your fence. On the other hand, the i-Series (like the M5000i) come with a weatherproof external display, adaptive output, and you can add a Wi-Fi Gateway plus an app for instant alerts. They also work with fence monitors to help zone in on faults, which is handy for bigger, more complicated setups.

Which M‑series model should I choose for my fence length and animals?

Gallagher’s M‑range spans small paddock units like M120/M160 up to higher‑output units such as M650/M950/M1400, plus the smart M5000i at the top end. As a very rough guide based on multi‑wire and ideal conditions:

M120 up to 8km; hobby/small paddocks
M160 up to 9km; still small runs but a step up in stored energy
M350/M550/M650 up to 28/35/40km; suit mixed livestock and longer perimeter lines
M950/M1400 up to 42/55km; higher load/vegetation and larger blocks
M5000i (i‑Series) up to 100km and adds smart diagnostics/monitoring
