SKU: 33DOL-45RT-10-30V

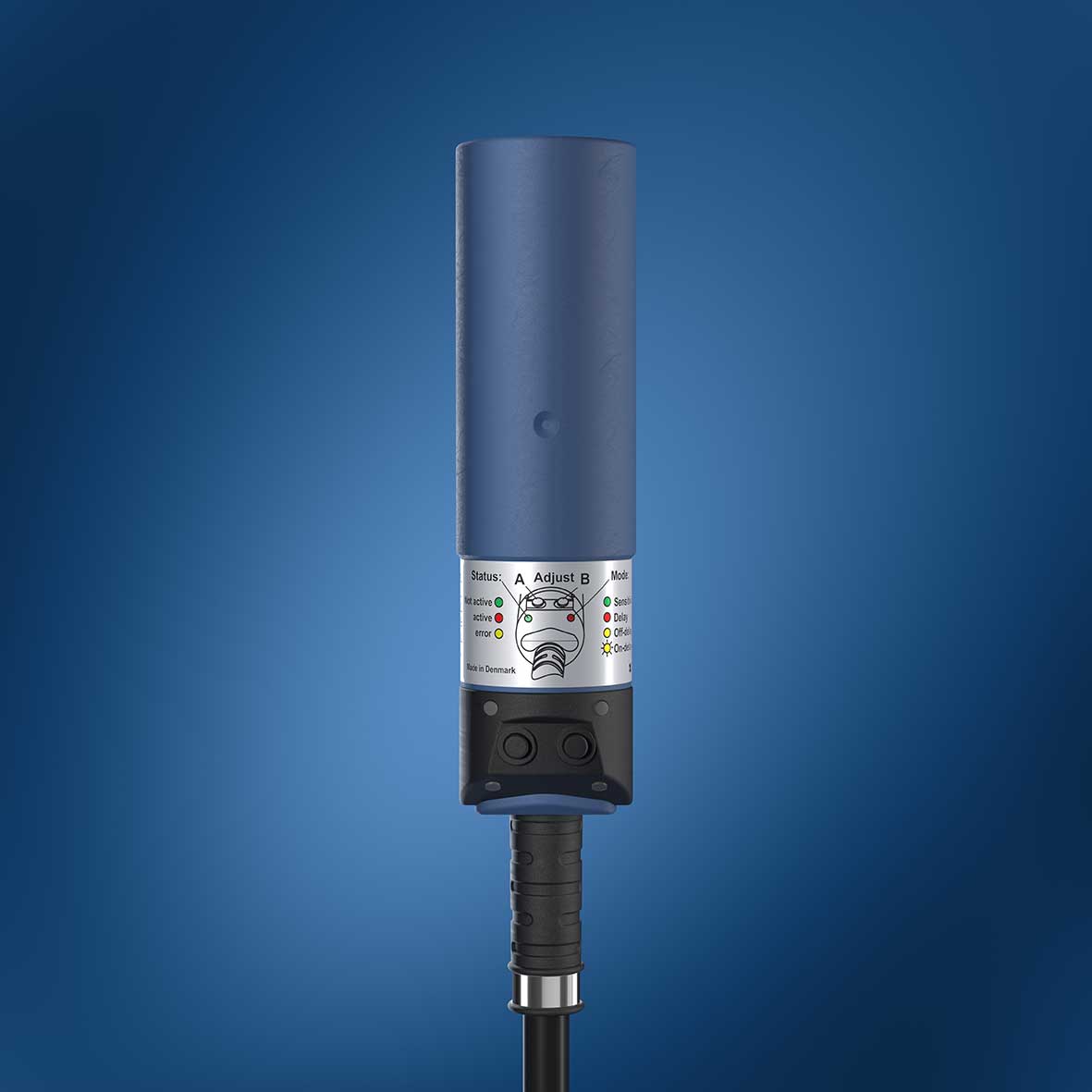

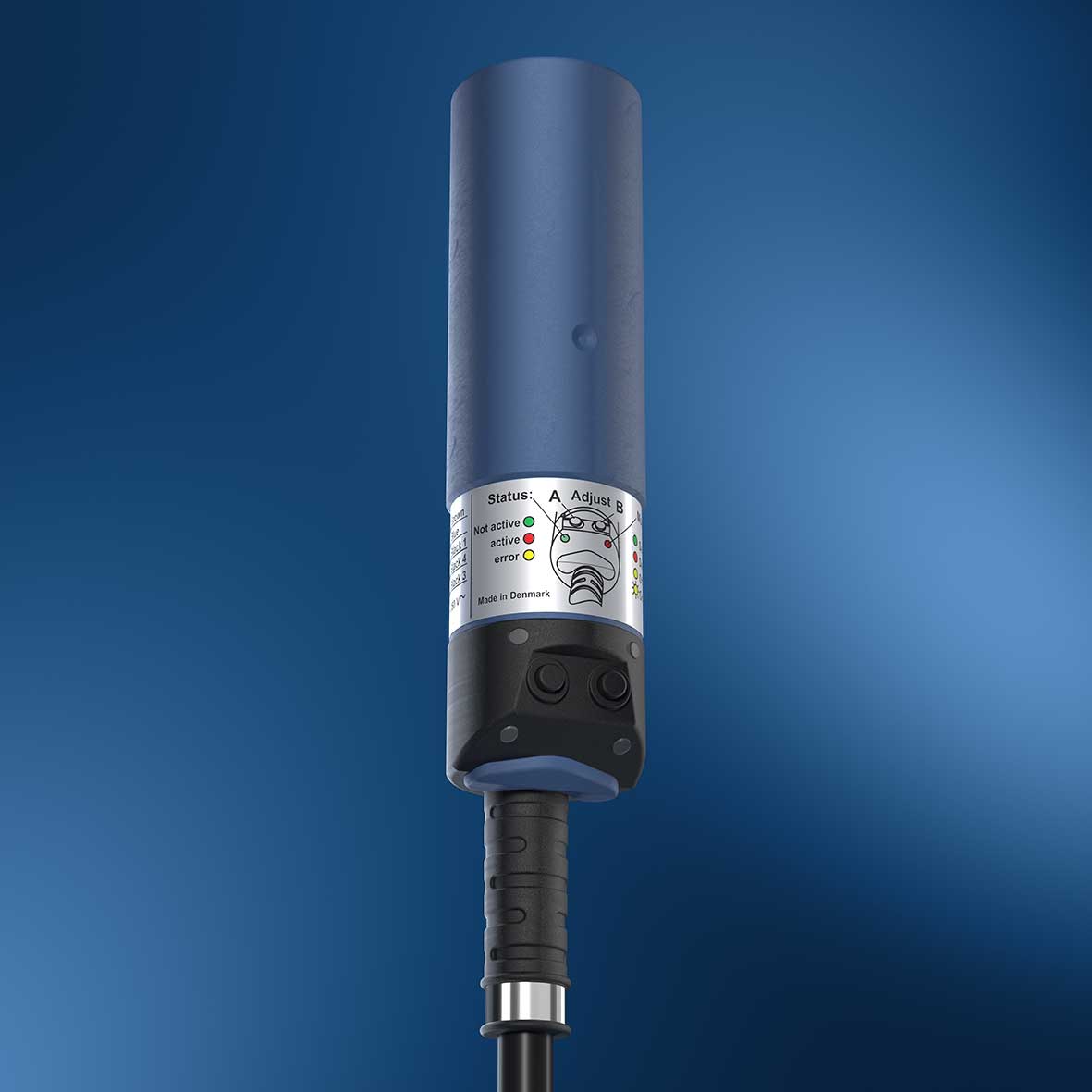

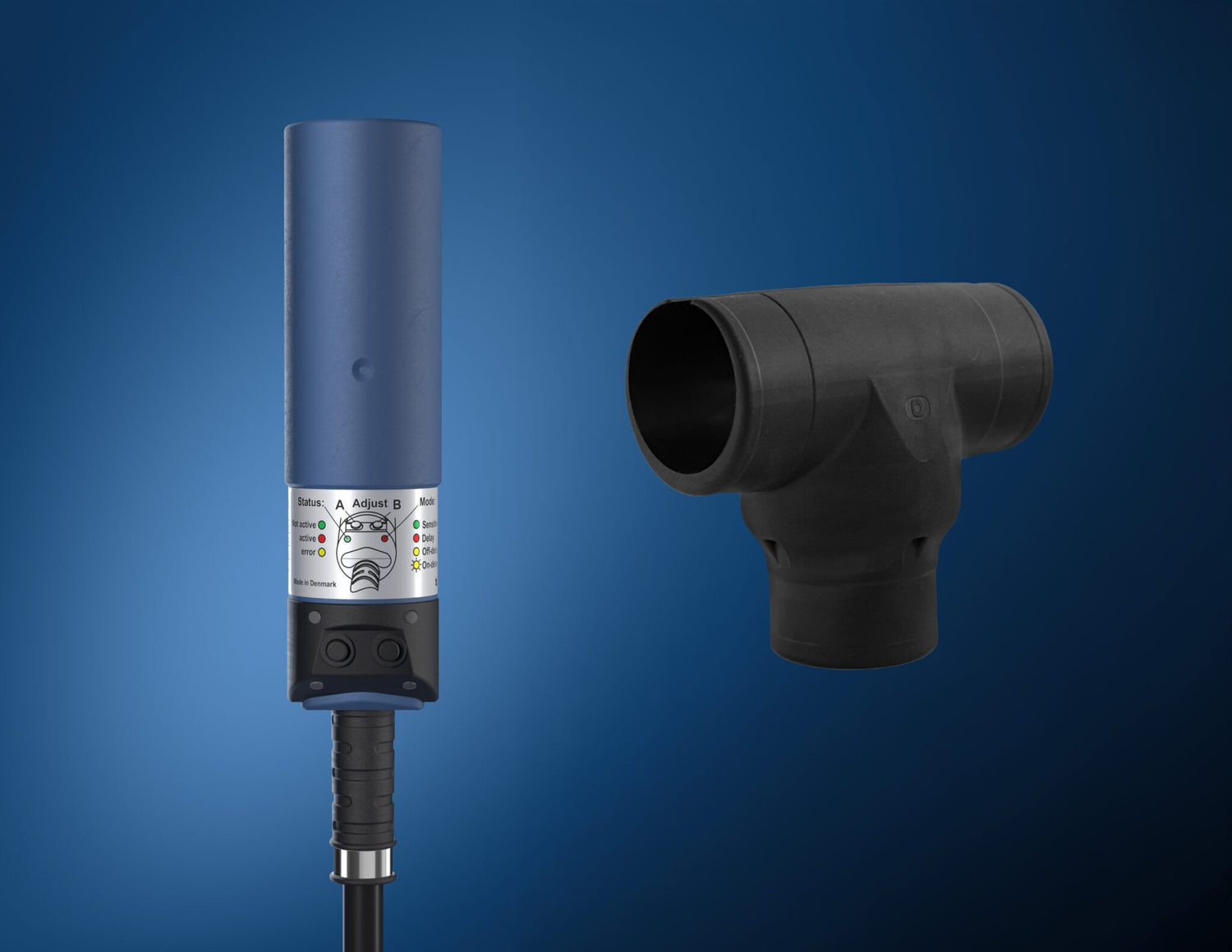

DOL 45RT (100682) Proximity Switch 30mm dia, Smooth with 0-4hrs delay (10-300V AC) 5 wire

Name: DOL 45RT (100682) Proximity Switch 30mm dia, Smooth with 0-4hrs delay (10-300V AC) 5 wire
Brand: DOL
SKU: 33DOL-45RT-10-30V
Price: 84.00 GBP
Availability: InStock

DOL 45RT 100682

£84.00

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

DOL 45 is a durable capacitive relay sensor intended for general detection of feed, grain, and solid substances.

The sensor offers excellent functionality and is simple to use. DOL 45 can be configured without any time delay, with a delayed switch-off or switch-on, and allows control over the delay duration. The time delay begins when the sensor is either activated (switch-on delay) or deactivated (switch-off delay). The relay activates once the time delay has elapsed.

Smooth walled
0-4 hours on or off delay
10-30V

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 0 - 0.99 kg DPD £3.90 plus VAT
* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

DOL 45RT (100682) Proximity Switch 30mm dia, Smooth with 0-4hrs delay (10-300V AC) 5 wire FAQs

What is a DOL capacitive sensor?

A DOL capacitive sensor is an electronic device that detects changes in capacitance to sense the level of materials such as feed, grain, or liquids. It is often used in farms, silos, and feeding systems. DOL is a world leader in the manufacture of the sensors.

What can a capacitive sensor detect?

It can detect both solid and liquid materials, including feed, grain, pellets, sawdust, water, and oil. Unlike mechanical switches, it has no moving parts, making it more reliable.

How does a capacitive sensor work?

The sensor creates an electric field around its probe. When material comes close to or touches the probe, the sensor detects a change in capacitance and switches its output on or off.

Do capacitive sensors require maintenance?

Only minimal maintenance is needed. Regular cleaning of the sensor surface helps ensure accurate detection, especially in dusty or sticky environments.

How do I adjust the sensitivity?

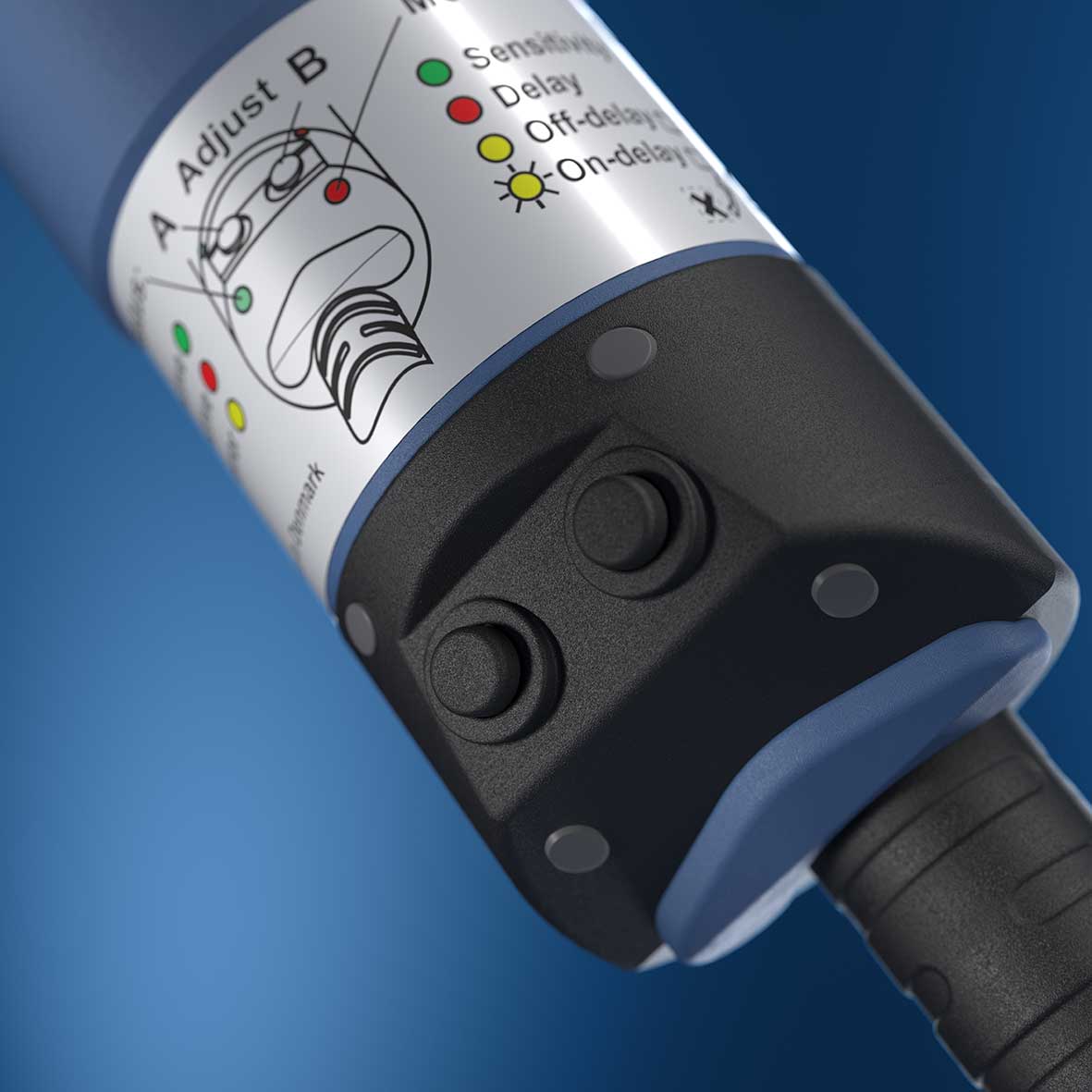

Most DOL capacitive sensors have a sensitivity screw and timer screw. Turning the sensor screw up makes the sensor detect materials farther away; turning it down makes it less sensitive to light or unwanted materials. The timer screw adjusts the length of time the sensor operates. iDOL sensors are easily connected to the DOL app and both the time and sensitivity can be adjusted by using your phone.

dol-sensors

dol-sensors is a recognized global brand that innovates, designs, and produces high-quality sensors and tailor-made sensor solutions for improving livestock production and animal welfare.

They design, produce, and market intelligent capacitive sensors, climate sensors, and management sensors such as a 3D pig weighing camera and digital services for livestock farming and the feed industry.
