SKU: 33105101

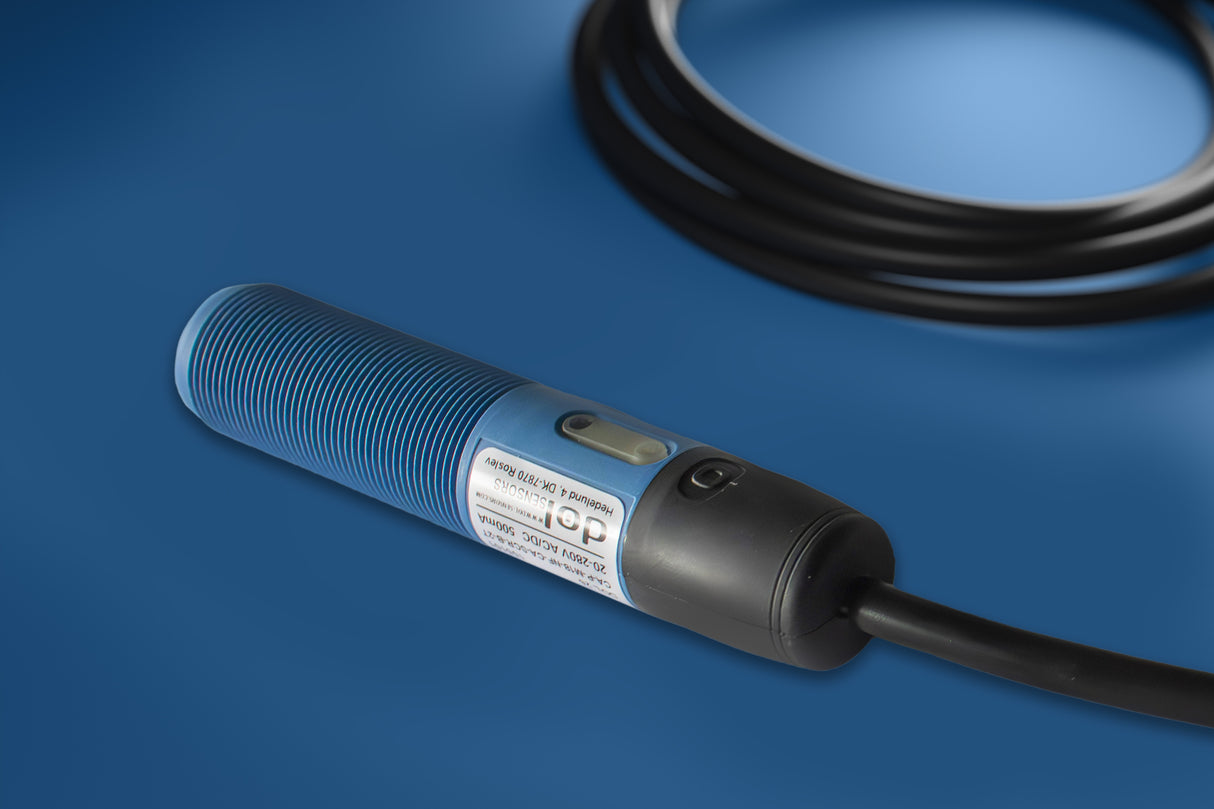

DOL 26 (105101) Proximity Switch THREADED 18mm dia, with 0-60 second delay. (20-230VAC) 2 wire

£67.20
Minimum Order Quantity:
Maximum quantity allowed is .
The product can be bought in quantity increments of .

DOL 26 Proximity Switch 18mm dia, with 0-60 second delay (Pre-set to 30) Adjustable Sensitivity 0-12mm (Pre-set to 6mm) (20-280VAC/DC) 2 wire
THE REVOLUTIONARY PRODUCT FEATURES

  • DOL 26 is a capacitive sensor for detecting loose and solid materials.
  • DOL 26 is immune to EMI, short circuits and any overload. No more burned off sensors due to installation mistakes.
  • The mechanical design makes DOL 26 ideal for integration into applications with limited space. The full-return option is especially suited for feeding pans.
  • Very low power consumption in off state – enables possibility for sensors working in parallel on the same contactor. Unique possibility for controlling cross auger systems.
  • IP69k and NEMA 1/3/4/6/12/13 environment protection.
    FUNCTIONALITY

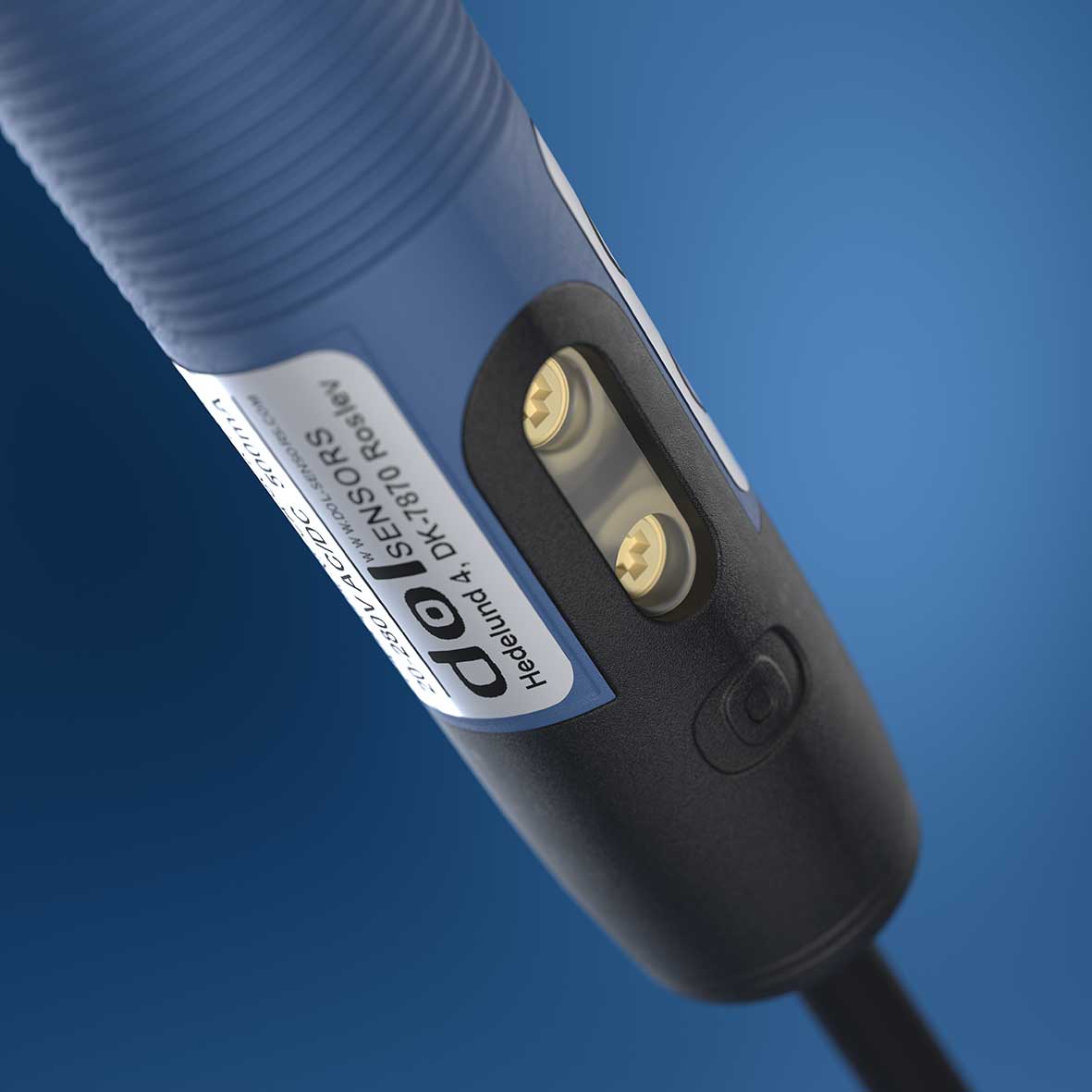

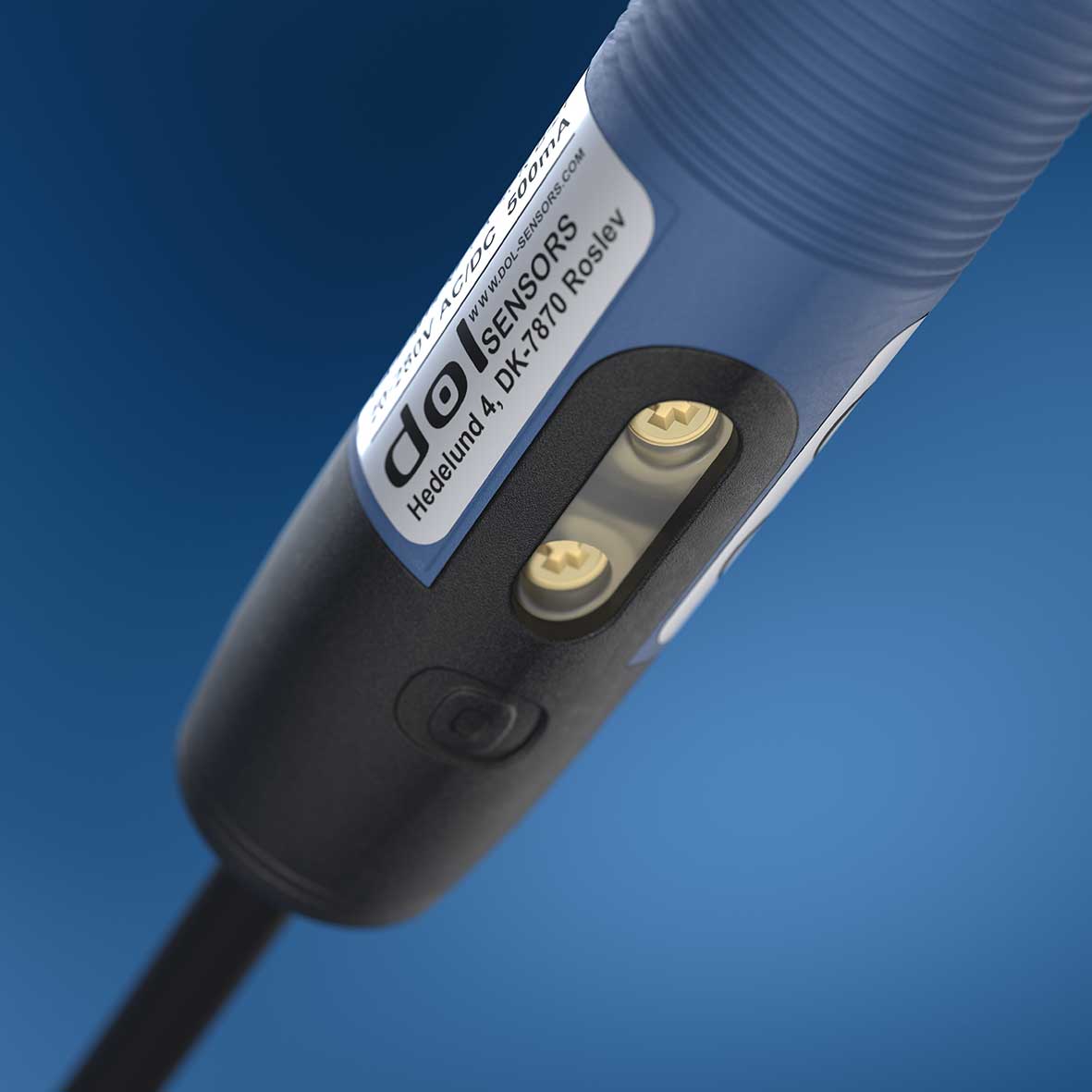

  • Easy trimmer adjustment on a single turn 240° trimmer with linear or non-linear scale.
  • The sensitivity of the sensor can be fixed or adjusted using a trimmer to suit different types of feed.
  • The ON/OFF delay and MaxRunTimer of the sensor can be fixed or adjusted using a trimmer to suit different motor control units.
  • Functions which can be made available for adjustment on trimmers:
    - Make / Break contact
    - ON and/or OFF delay
    - MaxRunTimer
    - Sensitivity

    DOL26 105101

    Options:

    • DOL26 105108 same as above but with 0-600 sec delay and smooth body
    • DOL26 105207 same as above but with angled cable input and smooth body
    • DOL26 105107 same as above but with smooth body
