Direct Drive Unit - AT - One track, Three Phase, 12m / min - Layers / Broilers
£774.00
Unit price /
Unavailable
Minimum Order Quantity:
Maximum quantity allowed is .
The product can be bought in quantity increments of .
12m per Min (Chain Speed) is commonly used for Free Range rearing and layers as well as broilers

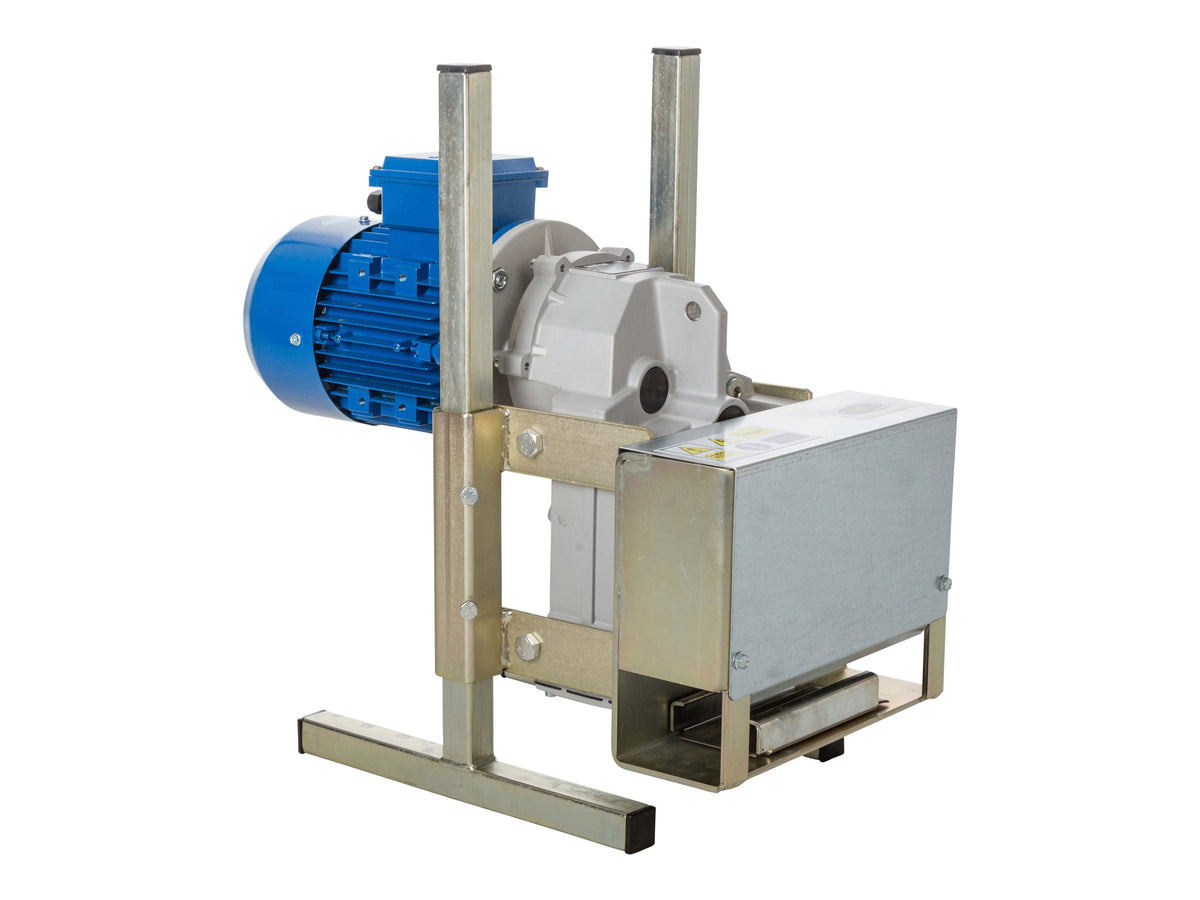

The Independent Direct Drive units manufactured by Dalton Engineering have been in production since early 2001. They were developed with ease of maintenance being the primary objective, hence some of the unique design features.
The motor used is a standard metric frame motor, which is readily available throughout the UK from any reputable motor supplier. If the chain should wrap around the drive wheel, or a solid object is trapped, then it is a simple operation to remove the shaft fixing bolt and knock the output shaft back and through the rear of the gearbox, allowing the drive wheel and drive arm to drop off, releasing the chain.
We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:
Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)
For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.
Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)
* 0 - 19.99 kg Courier: £3.90 plus VAT * 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg
Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)
* 0 - 0.99 kg DPD £3.90 plus VAT * 1 - 19.99 kg Courier £32.00 plus VAT * 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg
*Regional Exclusions & Weight Restrictions Apply
Direct Drive Unit - AT - One track, Three Phase, 12m / min - Layers...
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Delivery
On All Orders Over £250 ex VAT
Special offers
Regular sales and discounts
Easy returns
Hassle free returns policy
Chat facility
Talk to a real person
Direct Drive Unit - AT - One track, Three Phase, 12m / min - Layers / Broilers FAQs
Is the Single Track Flat Chain Feeder Drive Unit available in single phase and three phase?
Yes , all our Flat Chain Feeder Drive Units are available in both 1 and 3 phase.
Can I swap the motor on a Dalton Independent Drive Unit?
Yes, all of the Dalton supplies flat chain feeder drive units have removable motors, so there is no need to swap the whole unit should the motor fail. Simply remove 4 bolts and pull the motor free. Always ask an electrician to disconnect / reconnect a motor.
What do the legs do on a Dalton Drive Unit?
The legs are for stability when used in a free standing system. They are height adjustable.
Can the Single Track Flat Chain Feeder Drive Unit be suspended?
Yes, the Single Track Flat Chain Feeder Drive Unit can be suspended using a suitable suspension system.
Why is this Dalton drive unit specific to Layers and Broilers?
Our 12m per minute flat chain feeder drive units drive feed chain around the circuit at 12m per minute, this speed is ideal for layers and broilers as they are fed ad libitum, meaning they always have access to feed. Therefore chain speed can be slow as it is only replenishing existing feed.
