SKU: 1310090_030

90mm (68.5mm O/D 44.5mm I/D) Auger Flight) Auger Flight - Available in 30, 50 & 100m Reels

£270.00

Roll length

Minimum Order Quantity:

Maximum quantity allowed is .

The product can be bought in quantity increments of .

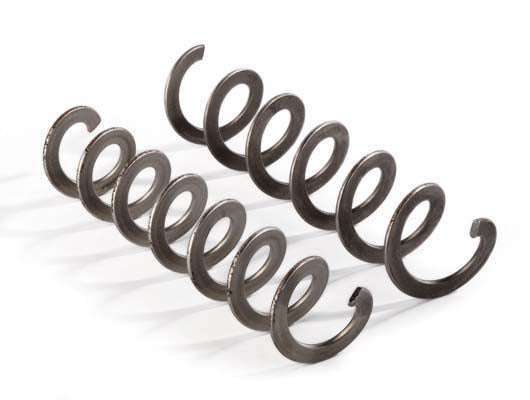

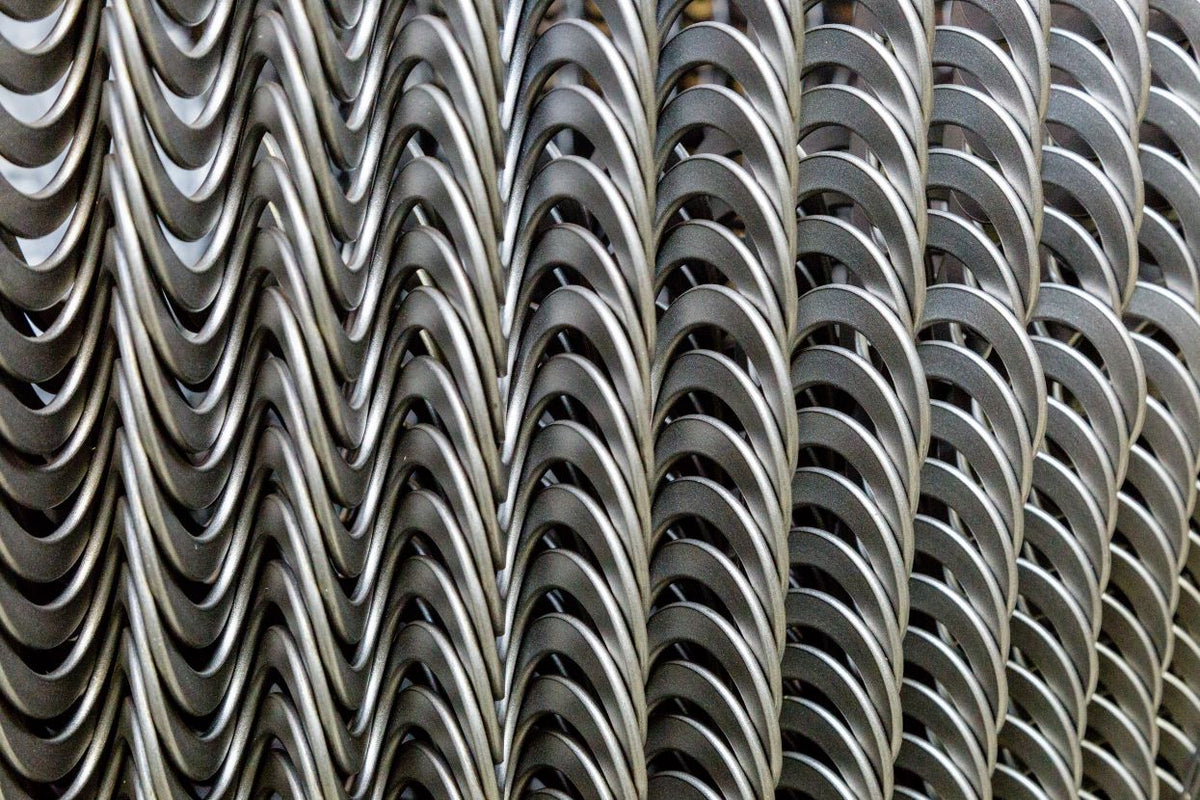

90mm Auger Flight, price per metre, stocked in 30m, 50m & 100m rolls.

68.5mm Outside Diameter
44.5mm Inside Diameter

Delivery and Shipping

We use DX and DPD to deliver our orders. Our delivery zones and rates are listed below:

Free Delivery (UK Mainland Only *Some postcodes excluded, see Zone 2 above)

For deliveries between 0 and 100 kg with a value that exceeds £249.99 plus VAT, we offer free delivery. Orders over 100 kg do not benefit from free delivery.

Delivery zone 1 (UK Mainland *Some postcodes excluded; see Zone 2 below)

* 0 - 19.99 kg Courier: £3.90 plus VAT
* 20 kg courier: £3.90 plus VAT + 40p per Kilo thereafter up to a limit of 100 kg

Delivery zone 2 (BT, IM, IV, KW, HS, ZE postcodes)

* 1 - 19.99 kg Courier £32.00 plus VAT
* 20Kg Courier £32.00 plus VAT + 58p per Kilo thereafter up to a limit of 100Kg

*Regional Exclusions & Weight Restrictions Apply

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Delivery

On All Orders Over £250 ex VAT
Special offers

Regular sales and discounts
Easy returns

Hassle free returns policy
Chat facility

Talk to a real person

90mm (68.5mm O/D 44.5mm I/D) Auger Flight) Auger Flight - Available in 30, 50 & 100m Reels FAQs

Can I join or weld Centreless Auger Flight?

Auger flight can be carefully welded. It is important not to overlap the end too much, weld on the inside of the spiral and not get it too hot. It is best to avoid joining auger flight if at all possible.

Can I cut Centreless Auger Flight?

75mm Auger Flight can be cut with an angle grinder or hacksaw.

What is 90mm Auger Flight used for?

90mm auger flight is the part of a centreless feed auger system that draws the feed up the centreless auger tubes. It is fixed at both ends and rotates by the means of an auger powerhead. Because it is a spiral it naturally pulls the feed along the tube.

What are the dimensions of 90mm Auger flight?

The outside diameter of 90mm Auger Flight is 68.5mm and the internal where the arbour shaft fits is 44.5mm. The pitch, the distance between two highest point of the spiral is 48mm
